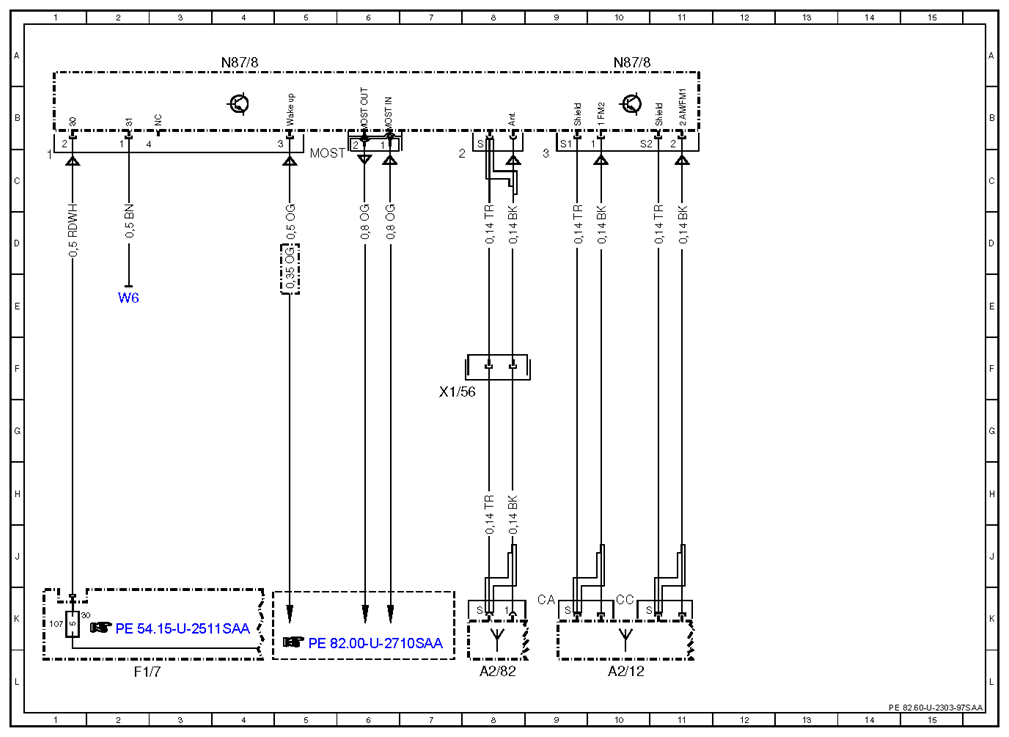

Wiring diagram for high-definition tuner control unit - PE82.60-U-2303-97SAA
| Code: | Designation: | Position: |
|---|---|---|
| A2/12 | Rear window antenna amplifier module | 10L |
| A2/82 | SDAR antenna | 8L |
| F1/7 | Left instrument panel fuse box | 2L |
| F1/7f107 | Fuse 107 | 1K |
| MOST | Media Oriented System Transport | 5C |
| N87/8 | High-definition tuner control unit | 4A |
| N87/8 | High-definition tuner control unit | 10A |
| W6 | Ground (left wheelhouse in luggage compartment) | 2E |
| X1/56 | DAB/SDARS antenna separation point | 7F |
