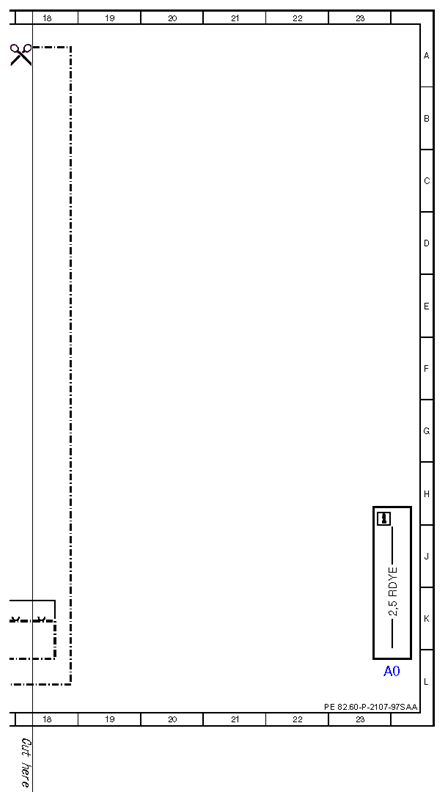

| A0 |
Color code key |
23L |
| A28/17 |
Telephone and Internet antenna splitter |
16L |
| A28/3 |
E-net compensator |
7L |
| A28/3 |
E-net compensator |
14L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
11L |
| N10/2f129 |
Fuse 129 |
2L |
| N10/2f129 |
Fuse 129 |
9L |
| N10/2f138 |
Fuse 138 |
12L |
| N10/2f138 |
Fuse 138 |
5L |

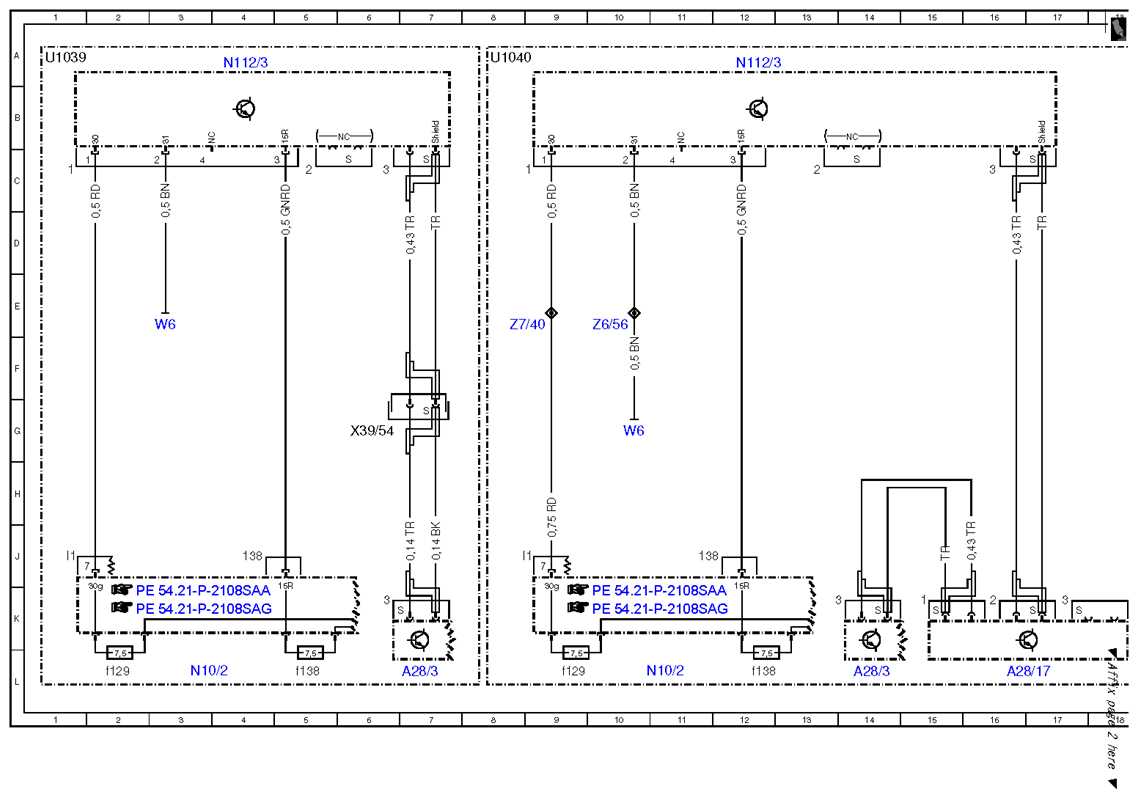

| N112/3 |
Internet router control unit |
12A |
| N112/3 |
Internet router control unit |
4A |
| U1039 |
Valid for WLAN |
1A |
| U1040 |
Valid for WLAN with comfort telephony |
8A |
| W6 |
Ground (left wheelhouse in luggage compartment) |
10G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
3E |
| X39/54 |
InCar Hotspot electrical connector |
6G |
| Z6/56 |
Circuit 31 connector sleeve |
10E |
| Z7/40 |
Tml. 30 connector sleeve |
9E |
