| 1 |
Switch-on request, signal |
21C |
| 10 |
Incoming call display, actuation |
18J |
| 10 |
Incoming call display, actuation |
13E |
| 11 |
Ring tone output, signal |
7K |
| 11 |
Ring tone output, signal |
3F |
| 11 |
Ring tone output, signal |
12J |
| 11 |
Ring tone output, signal |
4E |
| 11 |
Ring tone output, signal |
5F |
| 11 |
Ring tone output, signal |
7E |
| 12 |
Display of caller information, actuation |
12F |
| 12 |
Display of caller information, actuation |
18J |
| 13 |
Voice output, signal |
8K |
| 13 |
Voice output, signal |
4F |
| 13 |
Voice output, signal |
13J |
| 13 |
Voice output, signal |
4E |
| 13 |
Voice output, signal |
5F |
| 13 |
Voice output, signal |
7E |
| 14 |
Circuit 30, status |
20E |
| 14 |
Circuit 30, status |
33E |
| 2 |
Telephone, signal |
16C |
| 2 |
Telephone, signal |
24B |
| 2 |
Telephone, signal |
28B |
| 2 |
Telephone, signal |
33B |
| 3 |
Connection via Bluetooth, communication |
14B |
| 3 |
Connection via Bluetooth, communication |
19B |
| 4 |
Voice input, signal |
15G |
| 5 |
Establish connection for phone call, request |
19G |
| 5 |
Establish connection for phone call, request |
19E |
| 5 |
Establish connection for phone call, request |
25J |
| 5 |
Establish connection for phone call, request |
33J |
| 5 |
Establish connection for phone call, request |
32G |
| 6 |
Telephone/address book data display, request |
19G |
| 6 |
Telephone/address book data display, request |
19E |
| 6 |
Telephone/address book data display, request |
25J |
| 6 |
Telephone/address book data display, request |
32G |
| 6 |
Telephone/address book data display, request |
34J |
| 7 |
Accept phone call, request |
19G |
| 7 |
Accept phone call, request |
19E |
| 7 |
Accept phone call, request |
26J |
| 7 |
Accept phone call, request |
32G |
| 7 |
Accept phone call, request |
34J |
| 8 |
Mute, signal |
12J |
| 9 |
Telephone/address book data display, actuation |
19J |
| 9 |
Telephone/address book data display, actuation |
12E |
| A1 |
Instrument cluster |
20J |
| A2/13 |
Sound amplifier |
5F |
| A2/49 |
Telephone and GPS roof antenna |
34B |
| A2/53 |
Telephone/portable CTEL/STH radio remote control antenna splitter |
31B |
| A2/69 |
Digital sound processor |
5D |
| A2/91 |
Bluetooth antenna |
17B |
| A28/3 |
E-net compensator |
26B |
| A34/1 |
Bluetooth® mobile telephone adapter |
23B |
| A34/13 |
Rear handset cradle |
10C |
| A34/16 |
Rear handset |
11A |
| A34/7 |
Bluetooth module |
23B |
| A40/10 |
SPLITVIEW display |
10F |

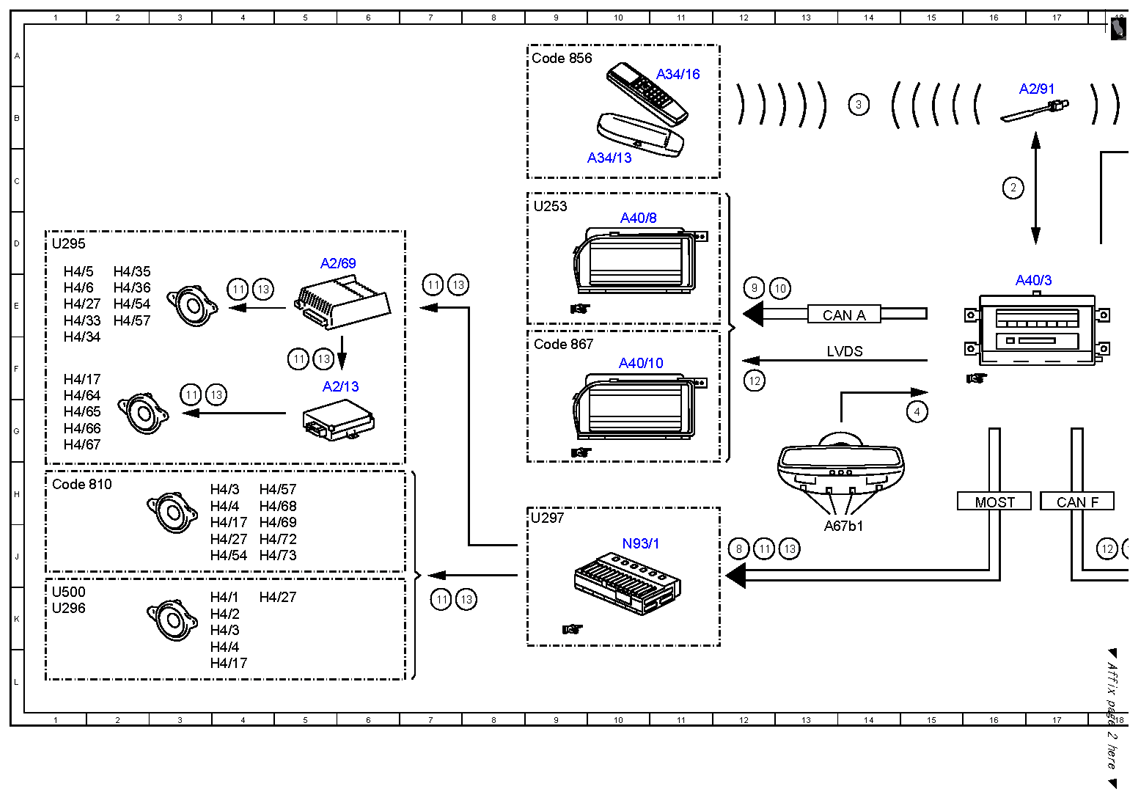

| A40/3 |
COMAND control unit |
16E |
| A40/8 |
COMAND display |
10D |
| A40/9 |
Front central operating unit |
23H |
| A67b1 |
Hands-free system microphone group |
13J |
| A8/1 |
Transmitter key |
37E |
| CAN A |
Telematics CAN |
20G |
| CAN A |
Telematics CAN |
13E |
| CAN B |
Interior CAN |
34E |
| CAN E |
Chassis CAN |
31G |
| CAN F |
Central CAN |
20E |
| CAN F |
Central CAN |
17H |
| CAN F |
Central CAN |
27E |

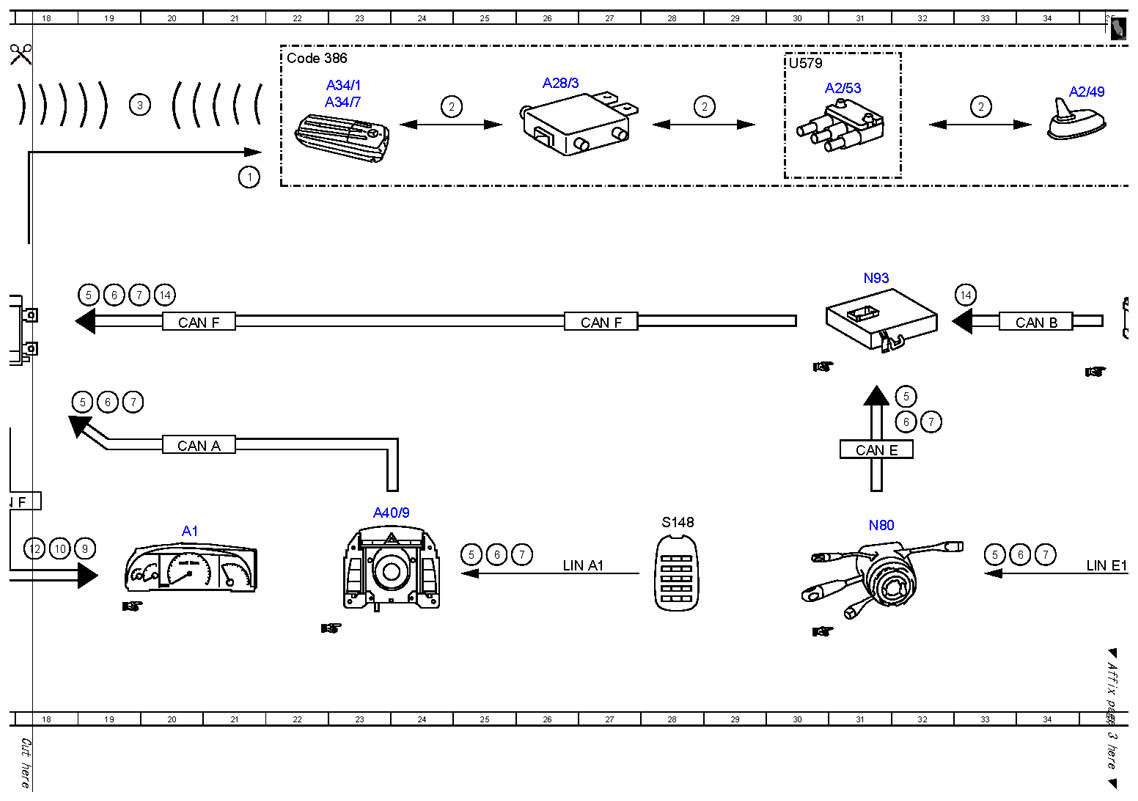

| Code 386 |
Mobile phone preinstallation with universal interface |
22A |
| Code 810 |
Sound system |
1H |
| Code 856 |
2nd handset in rear armrest |
9A |
| Code 867 |
SPLITVIEW |
9F |
| H4/1 |
Left front door speaker group |
3K |
| H4/17 |
Bass module speaker |
1F |
| H4/17 |
Bass module speaker |
3L |
| H4/17 |
Bass module speaker |
3J |
| H4/2 |
Right front door speaker group |
3K |
| H4/27 |
Center cockpit speaker (centerfill) |
4K |
| H4/27 |
Center cockpit speaker (centerfill) |
3J |
| H4/27 |
Center cockpit speaker (centerfill) |
1E |
| H4/3 |
Left rear door speaker group |
3K |
| H4/3 |
Left rear door speaker group |
3H |
| H4/33 |
Left front door tweeter |
1E |
| H4/34 |
Right front door tweeter |
1F |
| H4/35 |
Left rear door tweeter |
2E |
| H4/36 |
Right rear door tweeter |
2E |
| H4/4 |
Right rear door speaker group |
3L |
| H4/4 |
Right rear door speaker group |
3H |
| H4/5 |
Left front door speaker |
1E |
| H4/54 |
Left rear surround speaker |
3J |
| H4/54 |
Left rear surround speaker |
2E |
| H4/57 |
Right rear surround speaker |
4H |
| H4/57 |
Right rear surround speaker |
2E |
| H4/6 |
Right front door speaker |
1E |
| H4/64 |
Left front door woofer |
1G |
| H4/65 |
Right front door woofer |
1G |
| H4/66 |
Left rear door woofer |
1G |
| H4/67 |
Right rear door woofer |
1G |
| H4/68 |
Left front door Sound tweeter |
4H |
| H4/69 |
Right front door Sound tweeter |
4J |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
4J |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
4J |
| LIN A1 |
COU [ZBE] LIN |
26J |
| LIN E1 |
Steering LIN |
35J |
| LVDS |
Low voltage differential signal |
13F |
| MOST |
Media Oriented System Transport |
16H |

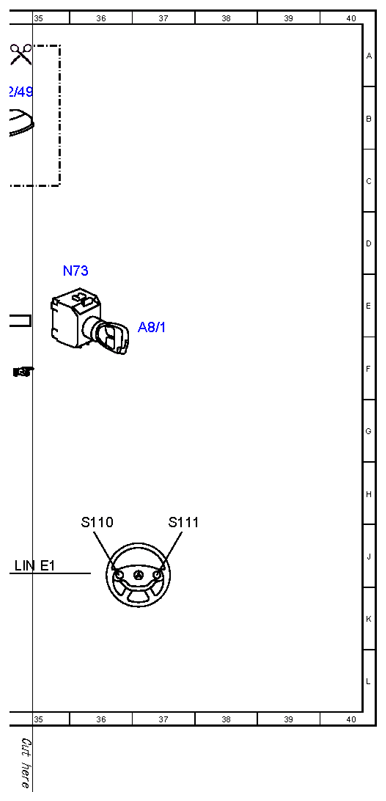

| N73 |
EIS [EZS] control unit |
36E |
| N80 |
Steering column module |
31J |
| N93 |
Central gateway control unit |
31E |
| N93/1 |
Audio tuner control unit |
10J |
| S110 |
Left multifunction steering wheel button group |
36J |
| S111 |
Right multifunction steering wheel button group |
37J |
| S148 |
Center console button group |
28J |
| U253 |
Not valid for SPLITVIEW display |
9C |
| U295 |
Valid for expanded sound system |
1D |
| U296 |
Not valid for expanded sound system |
1K |
| U297 |
Not valid for USA with expanded sound system |
9H |
| U500 |
Not valid for Sound System |
1K |
| U579 |
Valid for stationary heater (STH) |
30A |
