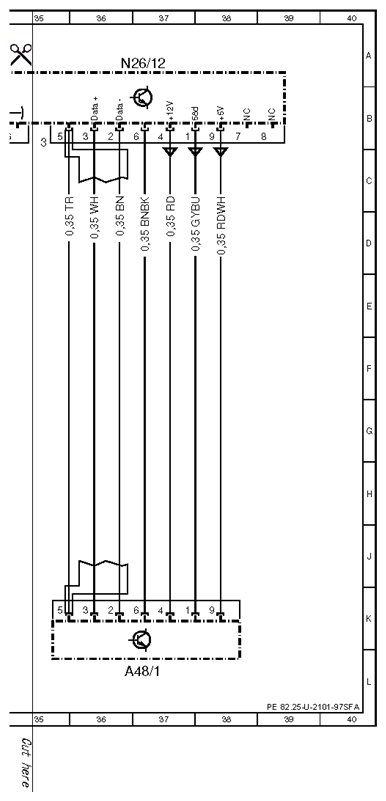

| A48/1 |
Special signal system control panel |
37L |
| B25/4 |
Left outside mirror microphone |
27L |
| B25/4x1 |
Left outside mirror microphone connector |
27J |
| B25/5 |
Right outside mirror microphone |
28L |
| B25/5x1 |
Right outside mirror microphone connector |
28J |

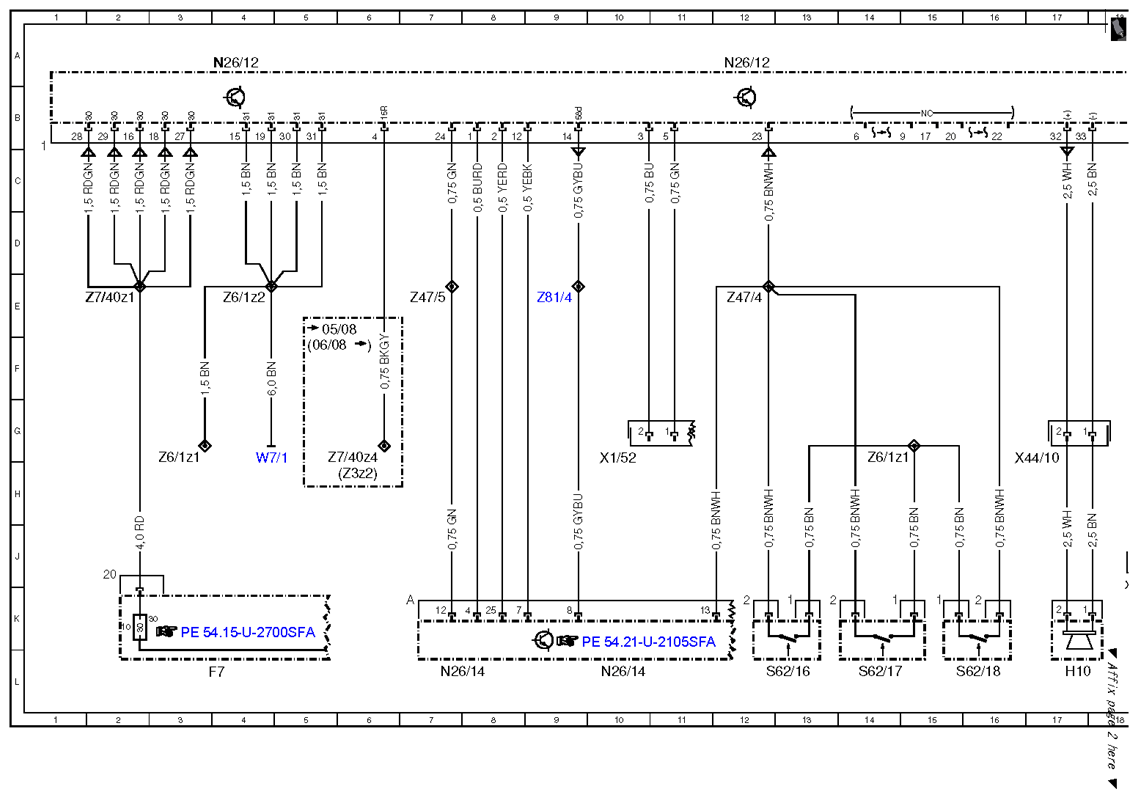

| F7 |
Fuse box I, rear |
4L |
| F7f10 |
Fuse 10 |
2K |
| H10 |
Outside speaker |
17L |
| H10/1 |
Inside speaker |
18L |
| H10/1x1 |
Inside speaker connector |
18K |
| N26/12 |
PAS [GAS] and special signal system control unit |
4A |
| N26/12 |
PAS [GAS] and special signal system control unit |
12A |
| N26/12 |
PAS [GAS] and special signal system control unit |
28A |
| N26/12 |
PAS [GAS] and special signal system control unit |
20A |
| N26/12 |
PAS [GAS] and special signal system control unit |
37A |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
10L |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
7L |
| S62/16 |
Left knee bolster emergency alarm activate button |
13L |
| S62/17 |
Right knee bolster emergency alarm activate button |
14L |
| S62/18 |
Rear fresh air outlet emergency alarm activate button |
16L |
| V26 |
Overvoltage protection diode |
34L |
| W19 |
Ground (right front seat crossmember) |
22C |
| W7/1 |
Ground (right taillamp in trunk) |
4H |
| X1/52 |
Authorities peripherals separation point |
10H |
| X41/1 |
Blue light separation point |
21H |
| X41/1 |
Blue light separation point |
23H |
| X41/4 |
Police beacon separation point |
20H |
| X41/4 |
Police beacon separation point |
26H |
| X44/10 |
PAS [GAS] outside speaker connector |
17H |
| X58/3 |
Microphone separation point |
30L |
| Z3z2 |
Tml. 15 connector sleeve |
6H |
| Z47/4 |
Alarm ON connector sleeve |
12E |
| Z47/5 |
Alarm off connector sleeve |
33G |
| Z47/5 |
Alarm off connector sleeve |
7E |
| Z47/9z1 |
Blue priority vehicle warning light, separation point connector sleeve |
21E |
| Z47/9z2 |
Blue priority vehicle warning light, separation point connector sleeve |
24E |
| Z6/1z1 |
Ground connector sleeve |
3G |
| Z6/1z1 |
Ground connector sleeve |
14G |
| Z6/1z2 |
Ground connector sleeve |
4E |
| Z6/1z7 |
Ground connector sleeve |
22E |
| Z7/40z1 |
Tml. 30 connector sleeve |
2E |
| Z7/40z4 |
Tml. 30 connector sleeve |
6G |
| Z81/4 |
FFS [RBA] circuit 58d connector sleeve |
9E |
