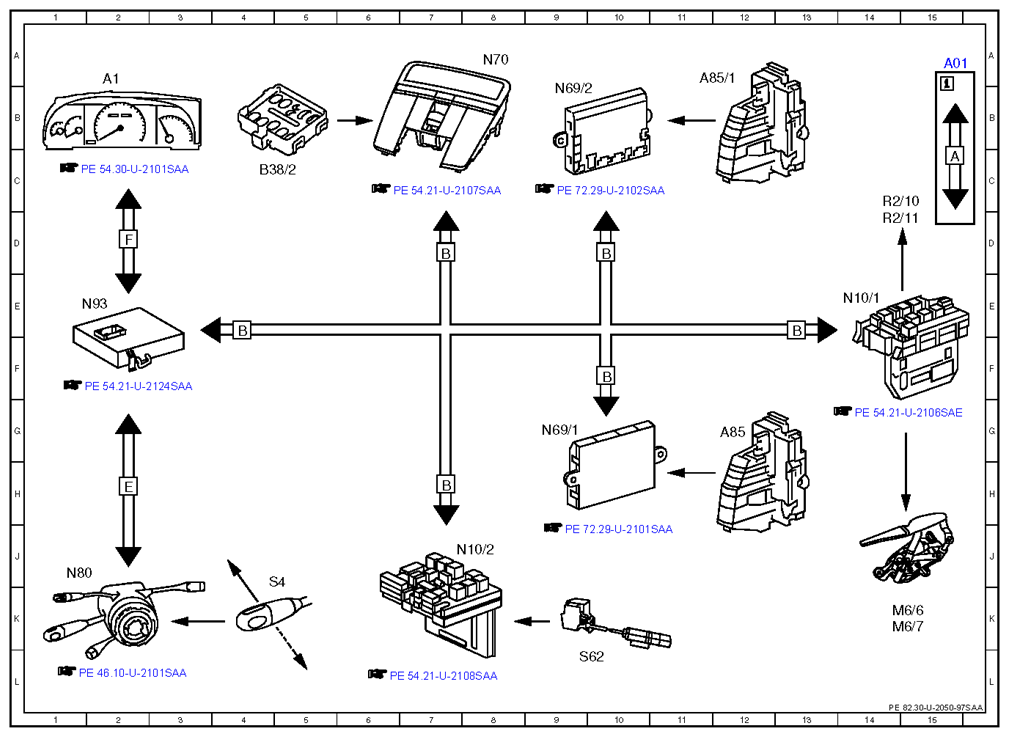

| A01 |
Explanation of CAN and LIN-Bus |
|
| A1 |
Instrument cluster |
2A |
| A85 |
Left front door lock unit |
12G |
| A85/1 |
Right front door lock switch |
11A |
| B38/2 |
Rain/light sensor |
4C |
| M6/6 |
Master wiper motor |
15K |
| M6/7 |
Slave wiper motor |
15K |
| N10/1 |
Front SAM control unit with fuse and relay module |
14E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
8J |
| N69/1 |
Left front door control unit |
9G |
| N69/2 |
Right front door control unit |
9B |
| N70 |
Overhead control panel control unit |
8A |
| N80 |
Steering column module |
1J |
| N93 |
Central gateway control unit |
2E |
| R2/10 |
Wiper park heater |
14C |
| R2/11 |
Washer nozzle hose heater |
14D |
| S4 |
Combination switch |
4J |
| S62 |
ATA [EDW] hood switch |
9L |
