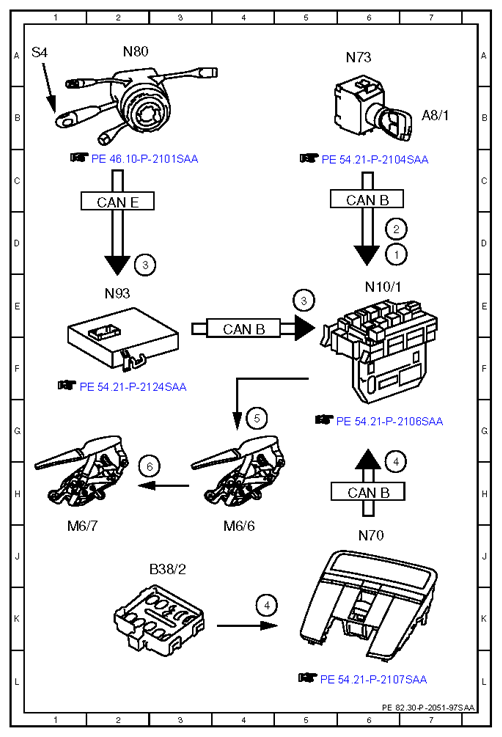

| 1 |
Circuit 15, status |
|
| 2 |
Circuit 50, status |
|
| 3 |
Combination switch, status |
|
| 3 |
Combination switch, status |
|
| 4 |
Rain/light sensor, status |
|
| 4 |
Rain/light sensor, status |
|
| 5 |
Master wiper motor, actuation |
|
| 6 |
Slave wiper motor, actuation |
|
| A8/1 |
Transmitter key |
|
| B38/2 |
Rain/light sensor |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN E |
Chassis CAN |
|
| M6/6 |
Master wiper motor |
|
| M6/7 |
Slave wiper motor |
|
| N10/1 |
Front SAM control unit with fuse and relay module |
|
| N70 |
Overhead control panel control unit |
|
| N73 |
EIS [EZS] control unit |
|
| N80 |
Steering column module |
|
| N93 |
Central gateway control unit |
|
| S4 |
Combination switch |
|
