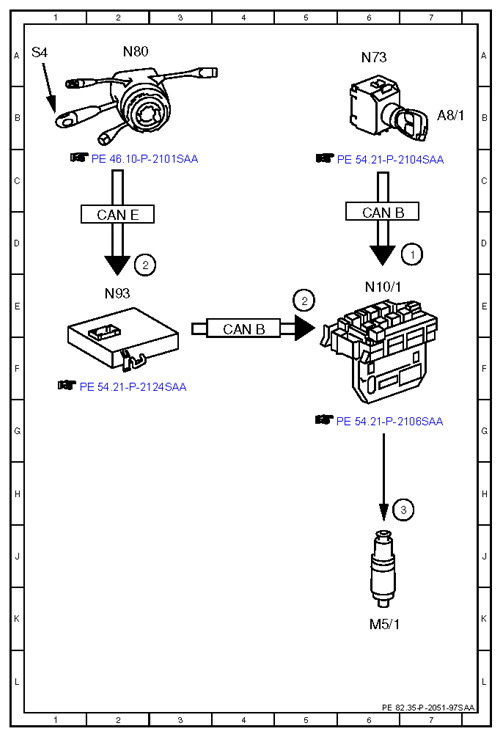

Electrical function schematic for windshield washer - PE82.35-P-2051-97SAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | |
| 2 | Combination switch, status | |
| 2 | Combination switch, status | |
| 3 | Window washer fluid pump, actuation | |
| A8/1 | Transmitter key | |
| CAN B | Interior CAN | |
| CAN B | Interior CAN | |
| CAN E | Chassis CAN | |
| M5/1 | Windshield washer fluid pump | |
| N10/1 | Front SAM control unit with fuse and relay module | |
| N73 | EIS [EZS] control unit | |
| N80 | Steering column module | |
| N93 | Central gateway control unit | |
| S4 | Combination switch |
