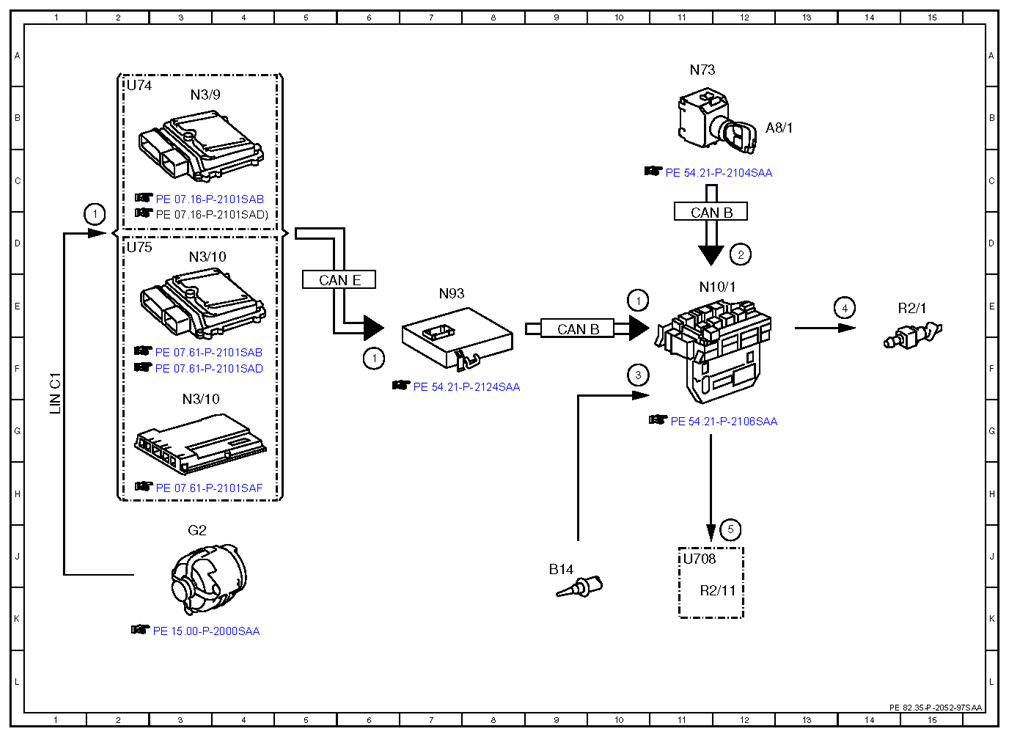

| 1 |
Circuit 61, status |
|
| 1 |
Circuit 61, status |
|
| 1 |
Circuit 61, status |
|
| 2 |
Circuit 15, status |
|
| 3 |
Outside temperature indicator temperature sensor, signal |
|
| 4 |
Washer nozzle heater, actuation |
|
| 5 |
Washer nozzle hose heater, actuation |
|
| A8/1 |
Transmitter key |
|
| B14 |
Outside temperature display temperature sensor |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN E |
Chassis CAN |
|
| G2 |
Alternator |
|
| LIN C1 |
Drive train LIN |
|
| N10/1 |
Front SAM control unit with fuse and relay module |
|
| N3/10 |
ME-SFI [ME] control unit |
|
| N3/10 |
ME-SFI [ME] control unit |
|
| N3/9 |
CDI control unit |
|
| N73 |
EIS [EZS] control unit |
|
| N93 |
Central gateway control unit |
|
| R2/1 |
Washer nozzle heater |
|
| R2/11 |
Washer nozzle hose heater |
|
| U708 |
Valid for washer nozzle hose heater |
|
| U74 |
Valid for diesel engines |
|
| U75 |
Valid for gasoline engines |
|
