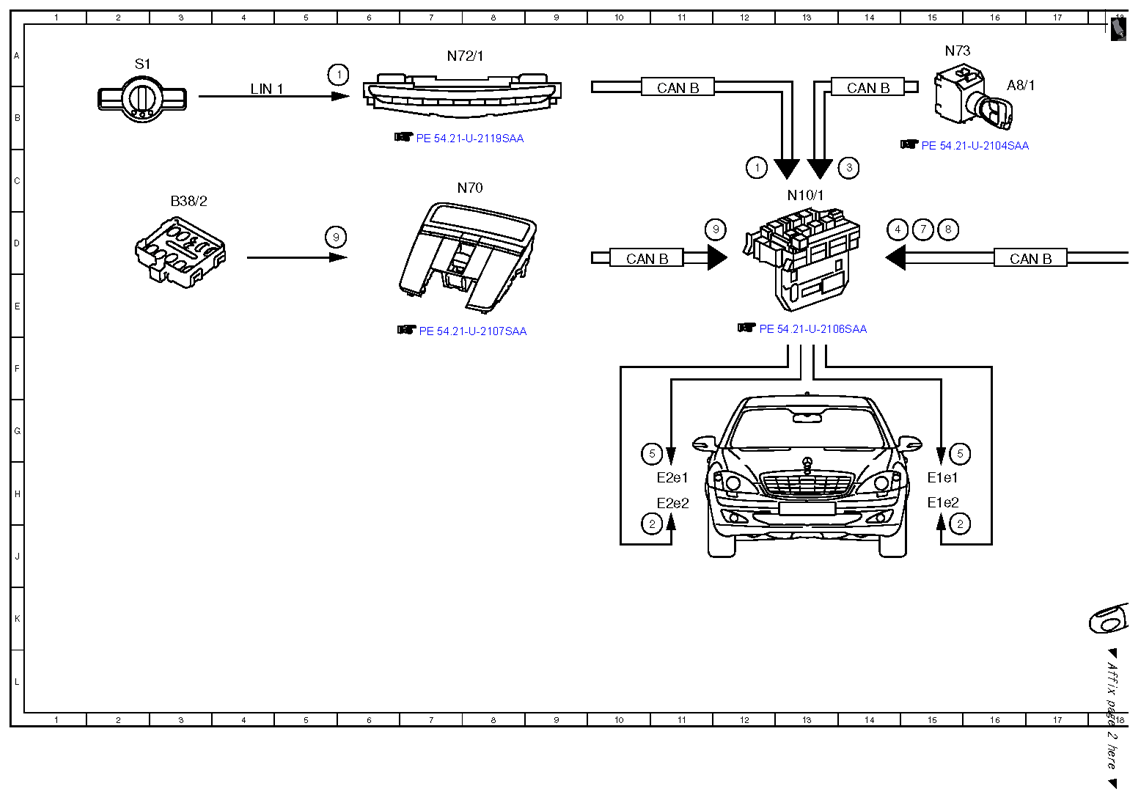

| 1 |
Rotary light switch, status |
12C |
| 1 |
Rotary light switch, status |
|
| 2 |
Low beams, actuation |
15J |
| 2 |
Low beams, actuation |
11J |
| 3 |
Circuit 15, status |
|
| 4 |
Combination switch, status |
20K |
| 4 |
Combination switch, status |
21H |
| 4 |
Combination switch, status |
|
| 5 |
High beams, actuation |
|
| 5 |
High beams, actuation |
|
| 6 |
High beam indicator lamp, actuation |
|
| 6 |
High beam indicator lamp, actuation |
|
| 7 |
Daytime running lights, request |
|
| 7 |
Daytime running lights, request |
|
| 8 |
Circuit 61, status |
23F |
| 8 |
Circuit 61, status |
|
| 9 |
Rain/light sensor, status |
5D |
| 9 |
Rain/light sensor, status |
|

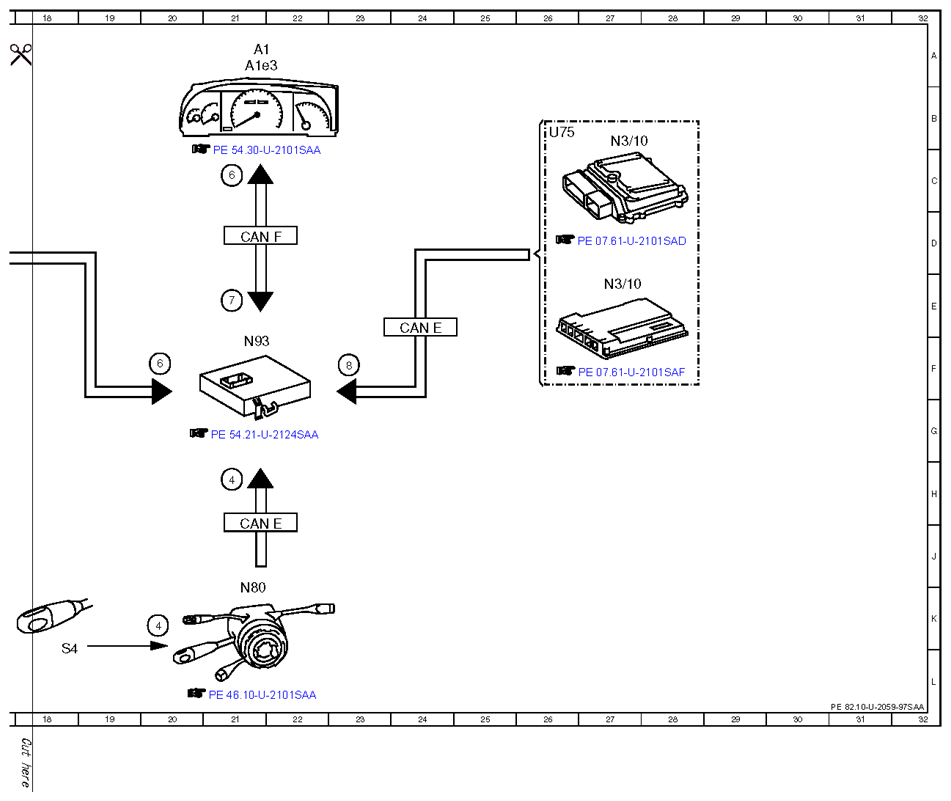

| A1 |
Instrument cluster |
21A |
| A1e3 |
High beam indicator lamp |
21A |
| A8/1 |
Transmitter key |
16B |
| B38/2 |
Rain/light sensor |
3C |
| CAN B |
Interior CAN |
10D |
| CAN B |
Interior CAN |
11B |
| CAN B |
Interior CAN |
16D |
| CAN B |
Interior CAN |
14B |
| CAN E |
Chassis CAN |
21J |
| CAN E |
Chassis CAN |
24E |
| CAN F |
Central CAN |
21D |
| E1e1 |
Left high beam |
15H |
| E1e2 |
Left low beam |
15H |
| E2e1 |
Right high beam |
11H |
| E2e2 |
Right low beam |
11H |
| LIN 1 |
Instrument panel LIN |
4B |
| N10/1 |
Front SAM control unit with fuse and relay module |
13C |
| N3/10 |
ME-SFI [ME] control unit |
27B |
| N3/10 |
ME-SFI [ME] control unit |
27E |
| N70 |
Overhead control panel control unit |
8C |
| N72/1 |
Upper control panel control unit |
7A |
| N73 |
EIS [EZS] control unit |
15A |
| N80 |
Steering column module |
21K |
| N93 |
Central gateway control unit |
21F |
| S1 |
Rotary light switch |
2A |
| S4 |
Combination switch |
18L |
| U75 |
Valid for gasoline engines |
26B |
