| 1 |
Rain/light sensor, status |
|
| 10 |
Footwell lamp, actuation |
|
| 10 |
Footwell lamp, actuation |
|
| 11 |
OFF delay time, status |
|
| 11 |
OFF delay time, status |
|
| 12 |
Door rotary tumbler switch, status |
|
| 12 |
Door rotary tumbler switch, status |
|
| 12 |
Door rotary tumbler switch, status |
|
| 12 |
Door rotary tumbler switch, status |
|
| 13 |
Entrance/exit lamp, request |
|
| 13 |
Entrance/exit lamp, request |
|
| 13 |
Entrance/exit lamp, request |
|
| 14 |
Entrance/exit lamp, actuation |
|
| 14 |
Entrance/exit lamp, actuation |
|
| 15 |
Door entrance/exit and warning lamp, actuation |
|
| 15 |
Door entrance/exit and warning lamp, actuation |
|
| 16 |
Trunk lid rotary tumbler microswitch, status |
|
| 17 |
Trunk illumination, actuation |
|
| 18 |
Ambient and warning lamp, actuation |
|
| 2 |
Circuit 15, status |
|
| 3 |
Central locking (CL[ZV]), status |
|
| 4 |
ATA [EDW] alarm, status |
|
| 5 |
Crash, signal |
|
| 5 |
Crash, signal |
|
| 6 |
Hazard warning flasher button, status |
|
| 6 |
Hazard warning flasher button, status |
|
| 7 |
Rear compartment lamp, actuation |
|
| 8 |
Reading lamp, actuation |
|
| 9 |
Footwell illumination, request |
|

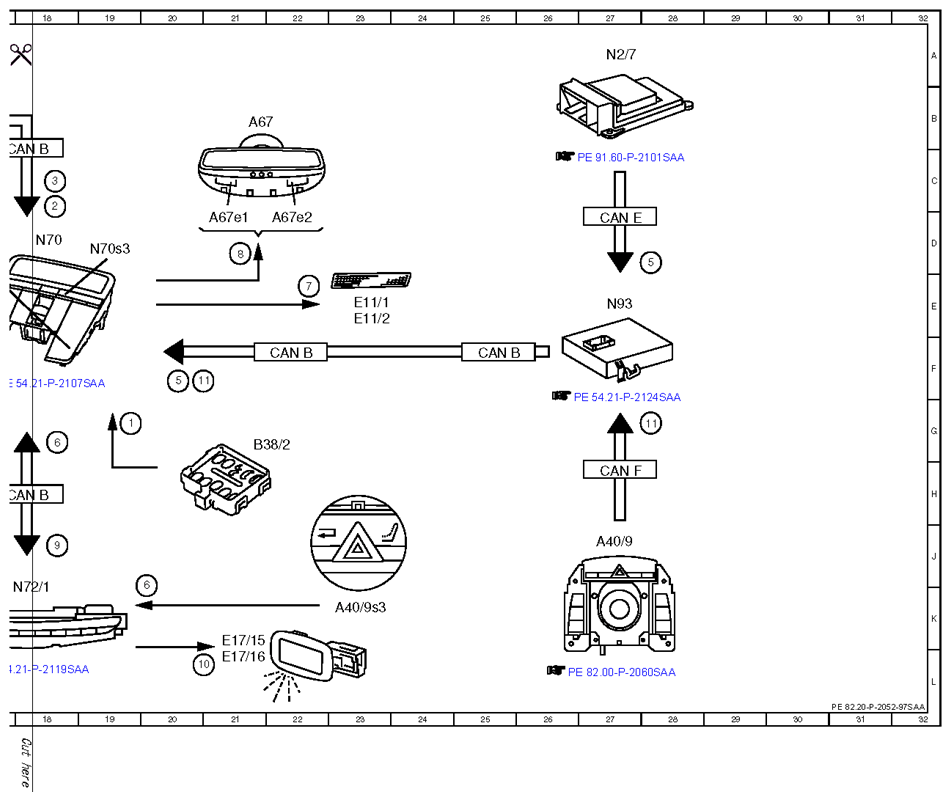

| A40/9 |
Front central operating unit |
|
| A40/9s3 |
Hazard warning system button |
|
| A67 |
Inside rearview mirror unit A67e1 Left reading lamp |
|
| A67e2 |
Right reading lamp |
|
| A8/1 |
Transmitter key |
|
| A85/1s1 |
Right front rotary tumbler switch |
|
| A85/3s1 |
Left rear rotary tumbler switch |
|
| A85/4s1 |
Right rear rotary tumbler switch |
|
| A85s1 |
Left front rotary tumbler switch |
|
| B38/2 |
Rain/light sensor |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN E |
Chassis CAN |
|
| CAN F |
Central CAN |
|
| E11/1 |
Left rear dome lamp |
|
| E11/2 |
Right rear dome lamp |
|
| E17/15 |
Right front footwell lamp |
|
| E17/16 |
Left front footwell lamp |
|
| E17/17 |
Right rear footwell lamp |
|
| E17/18 |
Left rear footwell lamp |
|
| E17/19 |
Front left door warning lamp |
|
| E17/20 |
Rear left door warning lamp |
|
| E17/21 |
Front right door warning lamp |
|
| E17/22 |
Rear right door warning lamp |
|
| E17/3 |
Left front door entrance/exit lamp |
|
| E17/4 |
Right front door entrance/exit lamp |
|
| E17/5 |
Left rear door entrance/exit lamp |
|
| E17/6 |
Right rear door entrance/exit lamp |
|
| E18/4 |
Right luggage compartment lamp |
|
| E18/5 |
Left luggage compartment lamp |
|
| E40/2 |
Left trunk lid ambient and warning lamp |
|
| E40/3 |
Right trunk lid ambient and warning lamp |
|
| M14/7s3 |
Trunk lid rotary tumbler microswitch |
|
| N10/2 |
Rear SAM control unit with fuse and relay module |
|
| N2/7 |
Restraint systems control unit |
|
| N32/1 |
Left front seat control unit |
|
| N32/2 |
Right front seat control unit |
|

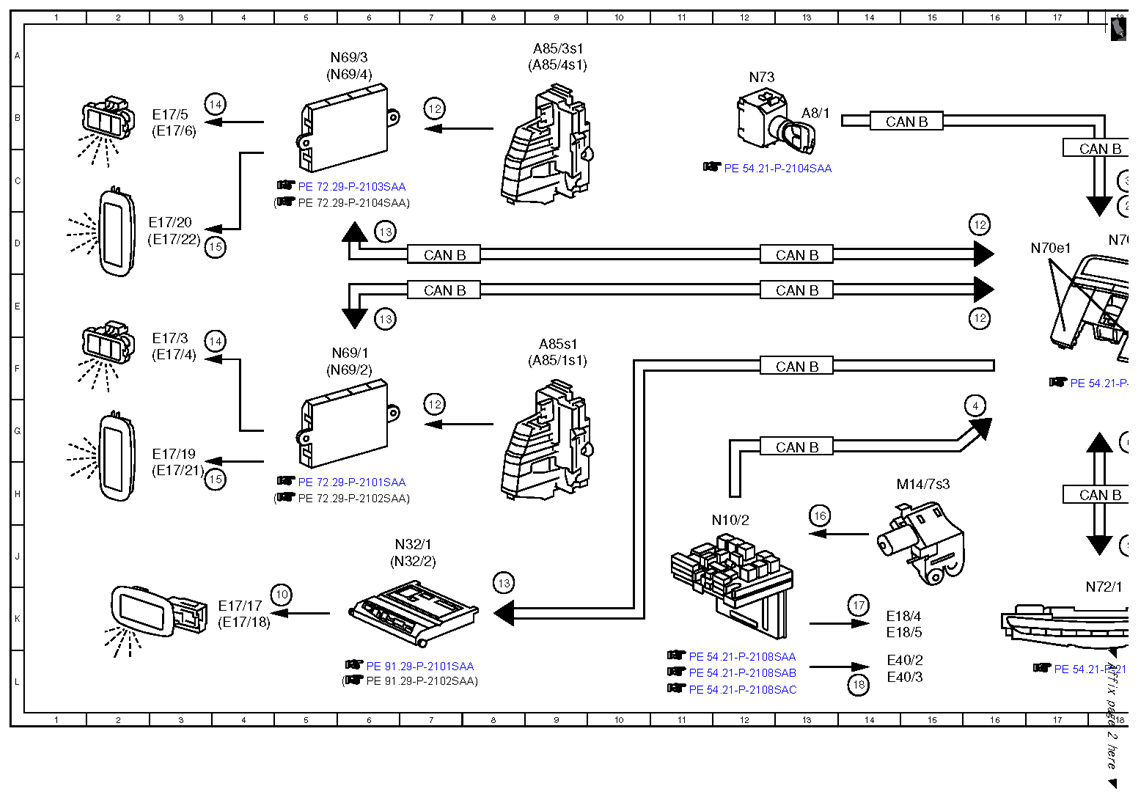

| N69/1 |
Left front door control unit |
|
| N69/2 |
Right front door control unit |
|
| N69/3 |
Rear left door control unit |
|
| N69/4 |
Right rear door control unit |
|
| N70 |
Overhead control panel control unit |
|
| N70e1 |
Front dome lamp |
|
| N70s3 |
Door contact ON and OFF switch |
|
| N72/1 |
Upper control panel control unit N73 |
|
| |
EIS [EZS] control unit |
|
| N93 |
Central gateway control unit |
|
