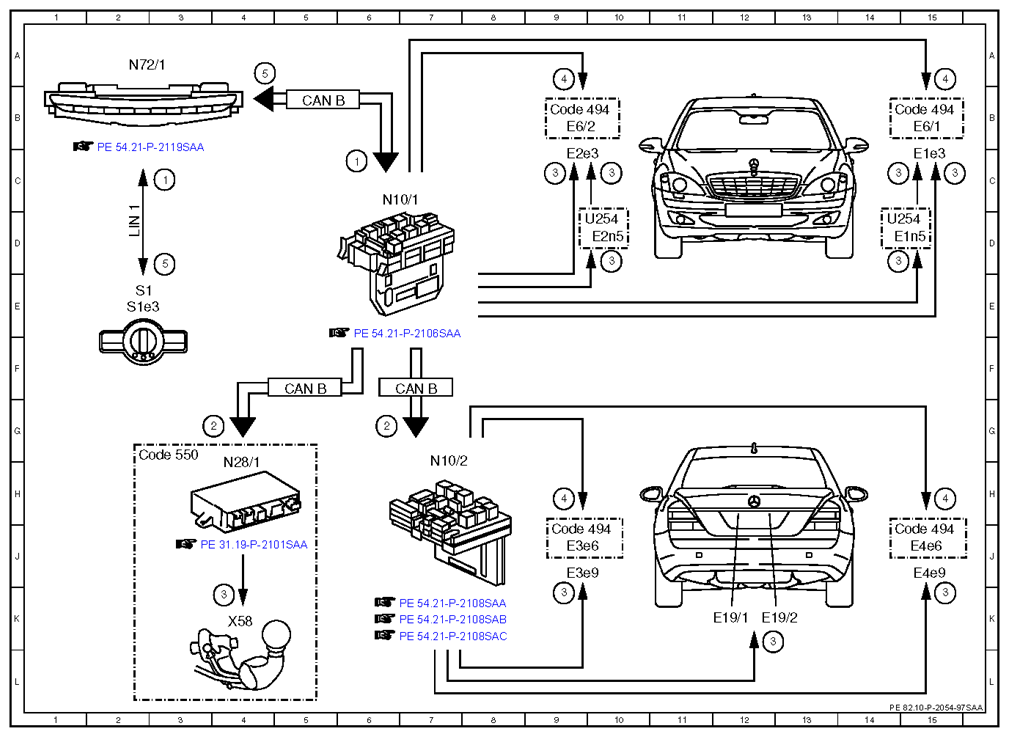

| 1 |
Rotary light switch, status |
6C |
| 1 |
Rotary light switch, status |
3C |
| 2 |
Standing and parking lights, request |
|
| 2 |
Standing and parking lights, request |
|
| 3 |
Standing and parking lights, actuation |
|
| 3 |
Standing and parking lights, actuation |
|
| 3 |
Standing and parking lights, actuation |
|
| 3 |
Standing and parking lights, actuation |
|
| 3 |
Standing and parking lights, actuation |
|
| 3 |
Standing and parking lights, actuation |
|
| 3 |
Standing and parking lights, actuation |
|
| 3 |
Standing and parking lights, actuation |
|
| 3 |
Standing and parking lights, actuation |
|
| 3 |
Standing and parking lights, actuation |
|
| 4 |
Side-marker lamp, actuation |
15H |
| 4 |
Side-marker lamp, actuation |
9H |
| 4 |
Side-marker lamp, actuation |
|
| 4 |
Side-marker lamp, actuation |
|
| 5 |
Standing lights actuation, status |
4A |
| 5 |
Standing lights actuation, status |
|
| CAN B |
Interior CAN |
5B |
| CAN B |
Interior CAN |
7F |
| CAN B |
Interior CAN |
5F |
| Code 494 |
USA version |
9B |
| Code 494 |
USA version |
14B |
| Code 494 |
USA version |
9J |
| Code 494 |
USA version |
14J |
| Code 550 |
Trailer hitch |
2G |
| E19/1 |
Left license plate lamp |
12K |
| E19/2 |
Right license plate lamp |
12K |
| E1e3 |
Left standing and parking lamp |
15C |
| E1n5 |
Left standing and parking light voltage converter |
14D |
| E2e3 |
Right standing and parking lamp |
9C |
| E2n5 |
Right standing and parking light voltage converter |
10D |
| E3e6 |
Left rear side marker lamp |
9J |
| E3e9 |
Left stop lamp, taillamp and parking lamp |
9J |
| E4e6 |
Right rear side-marker lamp |
15J |
| E4e9 |
Right stop lamp, taillamp and parking lamp |
15J |
| E6/1 |
Left front side marker lamp {{USA}} |
15B |
| E6/2 |
Right front side-marker lamp {{USA}} |
9B |
| LIN 1 |
Instrument panel LIN |
2D |
| N10/1 |
Front SAM control unit with fuse and relay module |
6C |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7H |
| N28/1 |
Trailer recognition control unit |
4H |
| N72/1 |
Upper control panel control unit |
2A |
| S1 |
Rotary light switch |
2E |
| S1e3 |
Standing lamps indicator lamp |
2E |
| U254 |
Valid for LED lamp unit |
14D |
| U254 |
Valid for LED lamp unit |
9D |
| X58 |
Trailer hitch socket (13-pin) |
4K |
