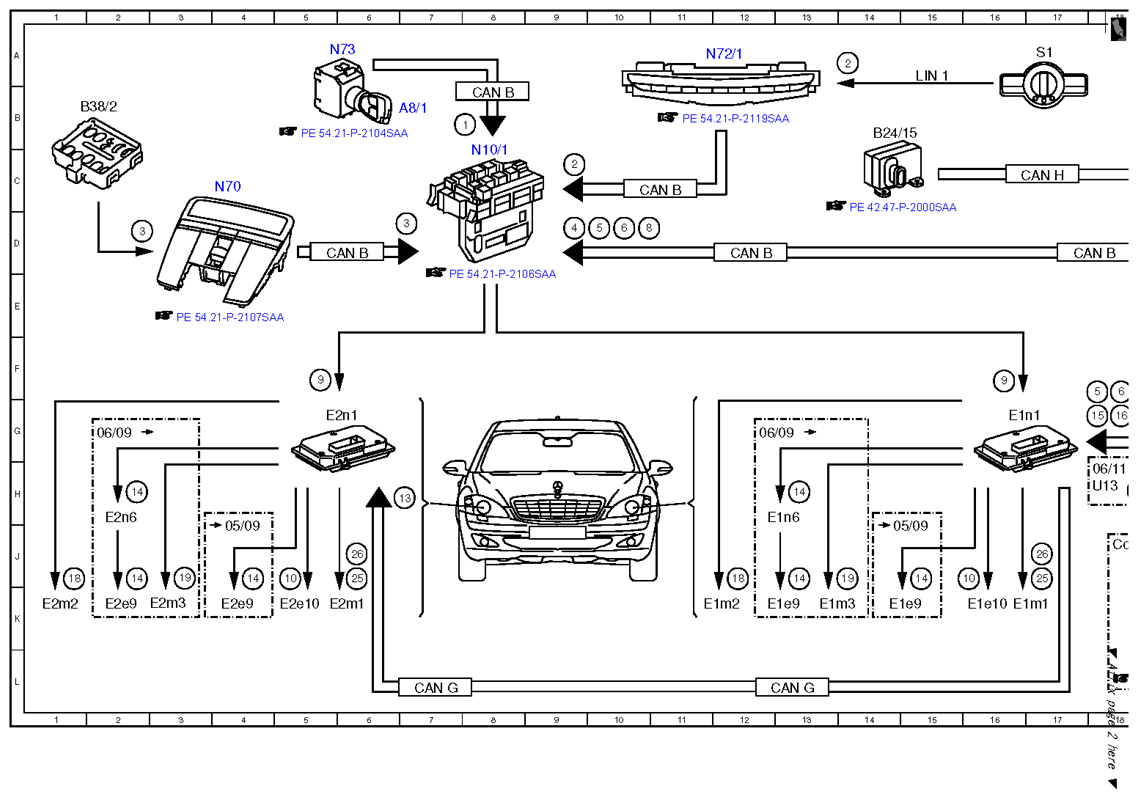

| 1 |
Circuit 15, status |
8B |
| 10 |
Bi-xenon lamp with integrated ignition module, actuation |
5J |
| 10 |
Bi-xenon lamp with integrated ignition module, actuation |
16J |
| 11 |
Steering angle sensor, signal |
30C |
| 11 |
Steering angle sensor, signal |
23G |
| 11 |
Steering angle sensor, signal |
|
| 11 |
Steering angle sensor, signal |
|
| 12 |
Combination switch, status |
30D |
| 12 |
Combination switch, status |
24G |
| 12 |
Combination switch, status |
|
| 12 |
Combination switch, status |
|
| 13 |
Synchronization, signal |
7H |
| 14 |
Cornering illumination, actuation |
4J |
| 14 |
Cornering illumination, actuation |
13J |
| 14 |
Cornering illumination, actuation |
2J |
| 14 |
Cornering illumination, actuation |
15J |
| 14 |
Cornering illumination, actuation |
|
| 14 |
Cornering illumination, actuation |
|
| 15 |
Selector lever position, status |
30F |
| 15 |
Selector lever position, status |
25H |
| 15 |
Selector lever position, status |
|
| 16 |
Intelligent Light System, status |
23J |
| 16 |
Intelligent Light System, status |
25D |
| 16 |
Intelligent Light System, status |
|
| 17 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
23B |
| 17 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
|
| 17 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
|
| 17 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
|
| 18 |
Dynamic curve illumination motor, actuation |
12J |
| 18 |
Dynamic curve illumination motor, actuation |
1J |
| 19 |
Light distribution actuator motor, actuation |
3J |
| 19 |
Light distribution actuator motor, actuation |
14J |
| 2 |
Rotary light switch, status |
14A |
| 2 |
Rotary light switch, status |
|
| 20 |
Rear fog light, actuation |
|
| 20 |
Rear fog light, actuation |
|
| 21 |
Automatic high beams, request |
23J |
| 21 |
Automatic high beams, request |
25D |
| 22 |
High beams, status |
|
| 22 |
High beams, status |
|
| 23 |
Light source detection status |
23F |
| 23 |
Light source detection status |
20J |
| 23 |
Light source detection status |
|
| 24 |
Automatic high beams, actuation |
|
| 24 |
Automatic high beams, actuation |
|
| 25 |
Headlamp range adjustment motor, actuation |
17J |
| 25 |
Headlamp range adjustment motor, actuation |
6J |
| 26 |
Automatic high beams, status |
23J |
| 26 |
Automatic high beams, status |
17J |
| 26 |
Automatic high beams, status |
6J |
| 26 |
Automatic high beams, status |
|
| 27 |
Spotlight function, request |
21H |
| 27 |
Spotlight function, request |
|
| 28 |
Spotlight function object information, data packet |
21J |
| 28 |
Spotlight function object information, data packet |
|
| 3 |
Rain/light sensor, status |
2D |
| 3 |
Rain/light sensor, status |
|
| 4 |
Engine speed, signal |
23H |
| 4 |
Engine speed, signal |
|
| 5 |
Circuit 61, status |
24H |
| 5 |
Circuit 61, status |
|
| 5 |
Circuit 61, status |
|
| 6 |
"PT_Rdy", signal |
24H |
| 6 |
"PT_Rdy", signal |
|
| 6 |
"PT_Rdy", signal |
|
| 7 |
Wheel speed, signal |
23K |
| 7 |
Wheel speed, signal |
24B |
| 7 |
Wheel speed, signal |
|
| 7 |
Wheel speed, signal |
|
| 8 |
Vehicle speed, signal |
23H |
| 8 |
Vehicle speed, signal |
|
| 8 |
Vehicle speed, signal |
|
| 9 |
Low beams, actuation |
|
| 9 |
Low beams, actuation |
|

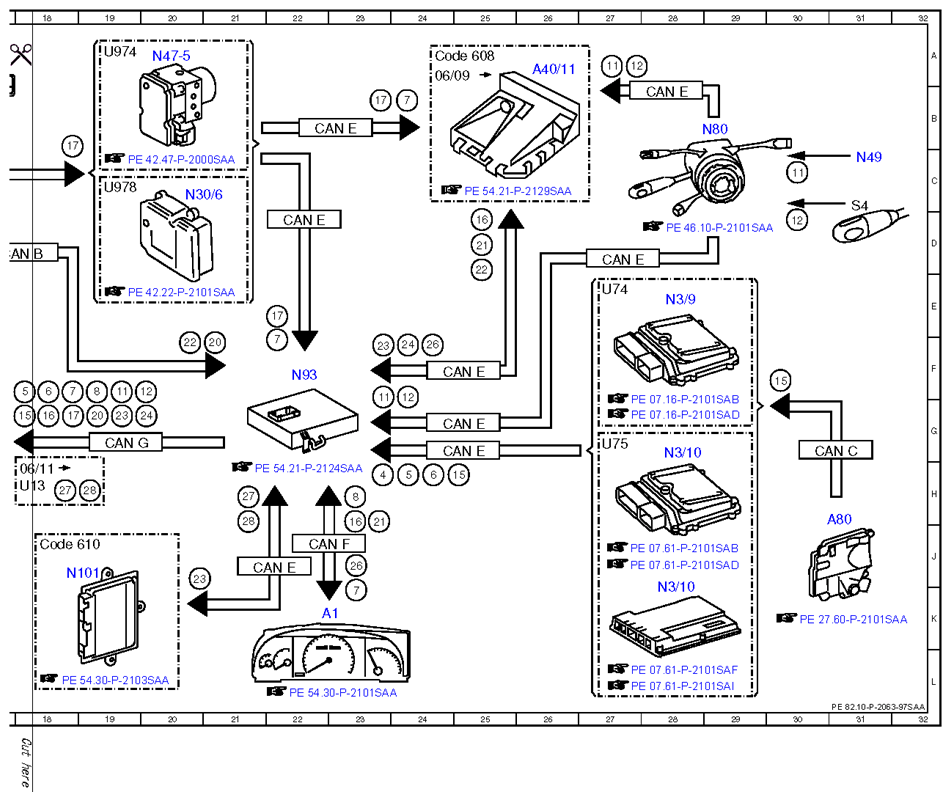

| A1 |
Instrument cluster |
22K |
| A40/11 |
Multifunction camera |
26A |
| A8/1 |
Transmitter key |
7B |
| A80 |
Intelligent servo module for DIRECT SELECT |
31H |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
14B |
| B38/2 |
Rain/light sensor |
2B |
| CAN B |
Interior CAN |
17D |
| CAN B |
Interior CAN |
12D |
| CAN B |
Interior CAN |
6D |
| CAN B |
Interior CAN |
8B |
| CAN B |
Interior CAN |
11C |
| CAN C |
Drive train CAN |
30G |
| CAN E |
Chassis CAN |
25G |
| CAN E |
Chassis CAN |
22D |
| CAN E |
Chassis CAN |
27D |
| CAN E |
Chassis CAN |
25G |
| CAN E |
Chassis CAN |
22B |
| CAN E |
Chassis CAN |
25F |
| CAN E |
Chassis CAN |
21J |
| CAN E |
Chassis CAN |
28B |
| CAN F |
Central CAN |
22J |
| CAN G |
Front end CAN |
19G |
| CAN G |
Front end CAN |
7L |
| CAN G |
Front end CAN |
13L |
| CAN H |
Vehicle dynamics CAN |
17C |
| Code 608 |
Adaptive Highbeam Assist |
24A |
| Code 610 |
Night View Assist |
18J |
| E1e10 |
Left bi-xenon lamp with integral ignition module |
16K |
| E1e9 |
Cornering illumination |
12K |
| E1e9 |
Cornering illumination |
14K |
| E1m1 |
Left headlamp range adjustment motor |
16K |
| E1m2 |
Left dynamic curve illumination motor |
11K |
| E1m3 |
Left light distribution actuator motor |
13K |
| E1n1 |
Xenon headlamp control unit |
16G |
| E1n6 |
Left turn signal and cornering light voltage converter |
12H |
| E2e10 |
Right bi-xenon lamp with integral ignition module |
5K |
| E2e9 |
Cornering illumination |
4K |
| E2e9 |
Cornering illumination |
2K |
| E2m1 |
Right headlamp range adjustment motor |
5K |
| E2m2 |
Right dynamic curve illumination motor |
1K |
| E2m3 |
Right light distribution actuator motor |
3K |
| E2n1 |
Xenon headlamp control unit |
5G |
| E2n6 |
Right turn signal and cornering light voltage converter |
2H |
| LIN 1 |
Instrument panel LIN |
15A |
| N10/1 |
Front SAM control unit with fuse and relay module |
8C |
| N101 |
Night vision assist control unit |
18J |
| N3/10 |
ME-SFI [ME] control unit |
28K |
| N3/10 |
ME-SFI [ME] control unit |
28G |
| N3/9 |
CDI control unit |
28E |
| N30/6 |
Regenerative braking system control unit |
20C |
| N47-5 |
ESP control unit |
20A |
| N49 |
Steering angle sensor |
31C |
| N70 |
Overhead control panel control unit |
4C |
| N72/1 |
Upper control panel control unit |
12A |
| N73 |
EIS [EZS] control unit |
6A |
| N80 |
Steering column module |
29B |
| N93 |
Central gateway control unit |
22F |
| S1 |
Rotary light switch |
17A |
| S4 |
Combination switch |
31C |
| U74 |
Valid for diesel engines |
27E |
| U75 |
Valid for gasoline engines |
27G |
| U974 |
Not valid for full hybrid drive |
19A |
| U978 |
Valid for full hybrid drive |
19C |
