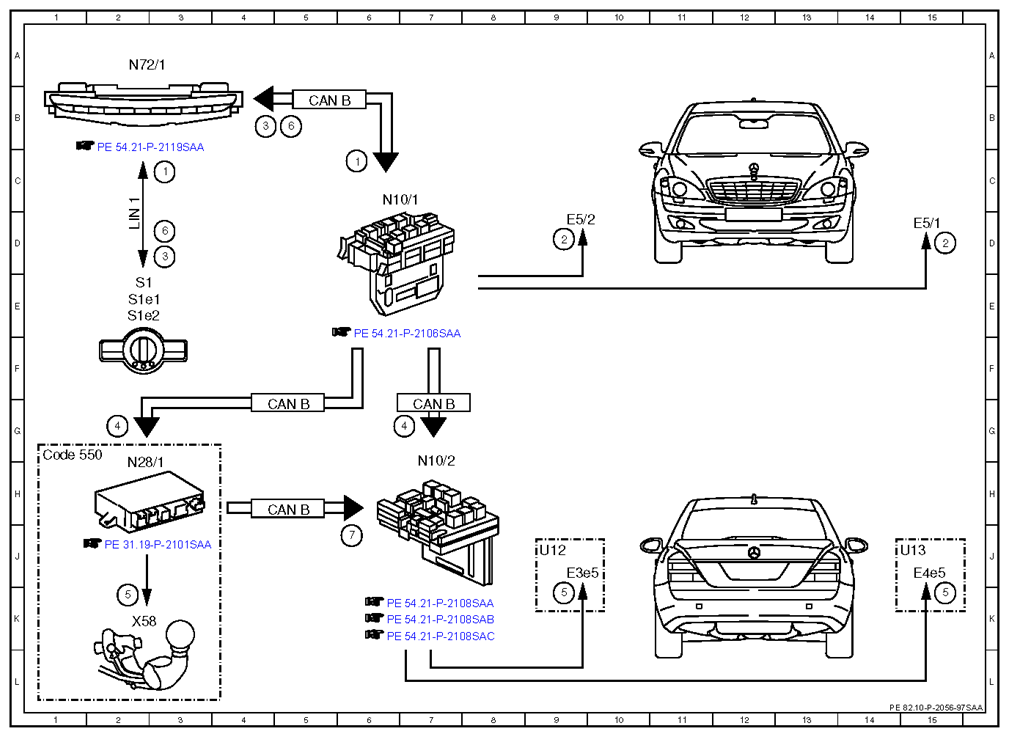

| 1 |
Rotary light switch, status |
6C |
| 1 |
Rotary light switch, status |
|
| 2 |
Front fog lamp, actuation |
9D |
| 2 |
Front fog lamp, actuation |
15D |
| 3 |
Front fog lamps indicator lamp, actuation |
|
| 3 |
Front fog lamps indicator lamp, actuation |
|
| 4 |
Rear fog light, request |
|
| 4 |
Rear fog light, request |
|
| 5 |
Rear fog light, actuation |
|
| 5 |
Rear fog light, actuation |
|
| 5 |
Rear fog light, actuation |
|
| 6 |
Rear fog light indicator light, actuation |
|
| 6 |
Rear fog light indicator light, actuation |
|
| 7 |
Trailer operation, status |
|
| CAN B |
Interior CAN |
5G |
| CAN B |
Interior CAN |
7G |
| CAN B |
Interior CAN |
5B |
| CAN B |
Interior CAN |
5H |
| Code 550 |
Trailer hitch |
1G |
| E3e5 |
Left rear fog lamp |
9J |
| E4e5 |
Right rear fog lamp |
15J |
| E5/1 |
Left front fog lamp |
15D |
| E5/2 |
Right fog lamp |
9D |
| LIN 1 |
Instrument panel LIN |
2D |
| N10/1 |
Front SAM control unit with fuse and relay module |
6C |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7H |
| N28/1 |
Trailer recognition control unit |
2H |
| N72/1 |
Upper control panel control unit |
2A |
| S1 |
Rotary light switch |
2E |
| S1e1 |
Front fog lamps indicator lamp |
2E |
| S1e2 |
Rear fog lamp indicator lamp |
2E |
| U12 |
Valid for left-hand drive vehicles |
9J |
| U13 |
Valid for right-hand drive vehicles |
14J |
| X58 |
Trailer hitch socket (13-pin) |
2K |
