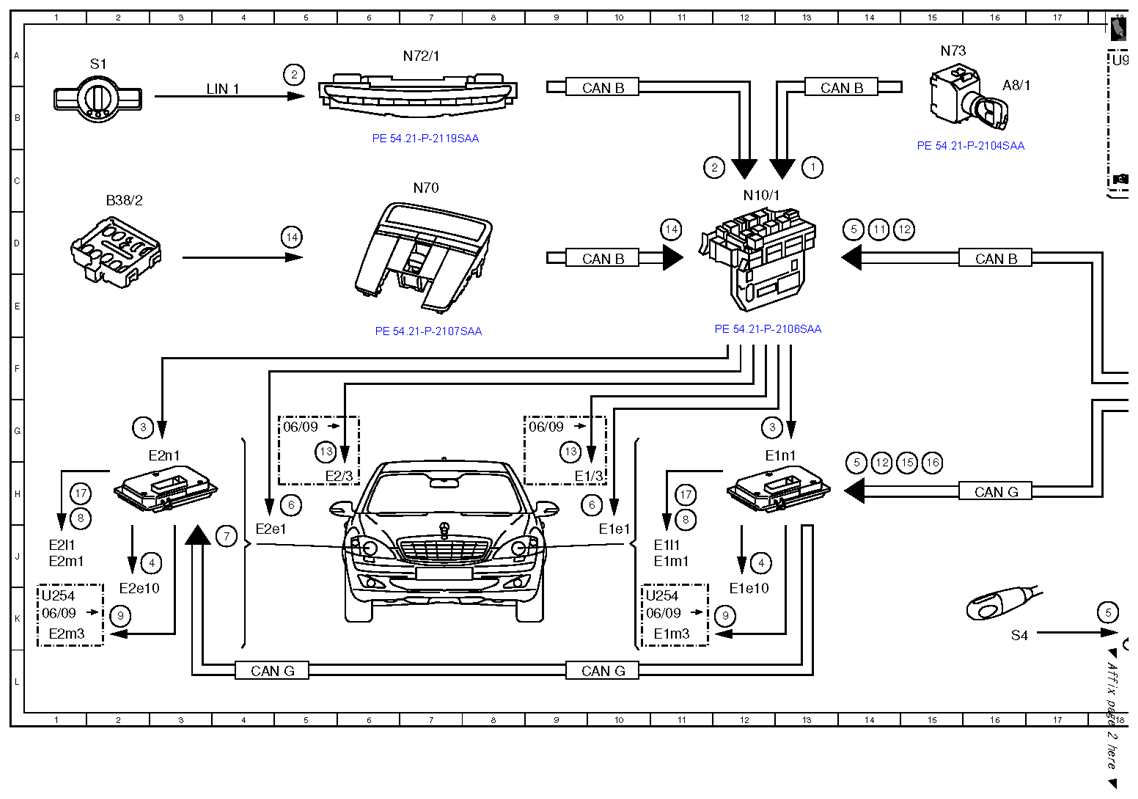

| 1 |
Circuit 15, status |
|
| 10 |
High beam indicator lamp, actuation |
|
| 10 |
High beam indicator lamp, actuation |
|
| 11 |
Daytime running lights, request |
|
| 11 |
Daytime running lights, request |
|
| 12 |
Circuit 61, status |
22G |
| 12 |
Circuit 61, status |
|
| 12 |
Circuit 61, status |
|
| 13 |
Daytime running lights, actuation |
|
| 13 |
Daytime running lights, actuation |
|
| 14 |
Rain/light sensor, status |
5D |
| 14 |
Rain/light sensor, status |
|
| 15 |
Level sensor, status |
21H |
| 15 |
Level sensor, status |
|
| 16 |
Wheel speed, signal |
|
| 16 |
Wheel speed, signal |
|
| 17 |
Headlamp range adjustment motor, actuation |
|
| 17 |
Headlamp range adjustment motor, actuation |
|
| 2 |
Rotary light switch, status |
12C |
| 2 |
Rotary light switch, status |
|
| 3 |
Low beams, request |
|
| 3 |
Low beams, request |
|
| 4 |
Bi-xenon lamp with integrated ignition module, actuation |
|
| 4 |
Bi-xenon lamp with integrated ignition module, actuation |
|
| 5 |
Combination switch, status |
18K |
| 5 |
Combination switch, status |
19H |
| 5 |
Combination switch, status |
|
| 5 |
Combination switch, status |
|
| 6 |
High beams, actuation |
|
| 6 |
High beams, actuation |
|
| 7 |
Synchronization, signal |
4J |
| 8 |
High beam solenoid, actuation |
|
| 8 |
High beam solenoid, actuation |
|
| 9 |
Light distribution actuator motor, actuation |
12K |
| 9 |
Light distribution actuator motor, actuation |
12K |

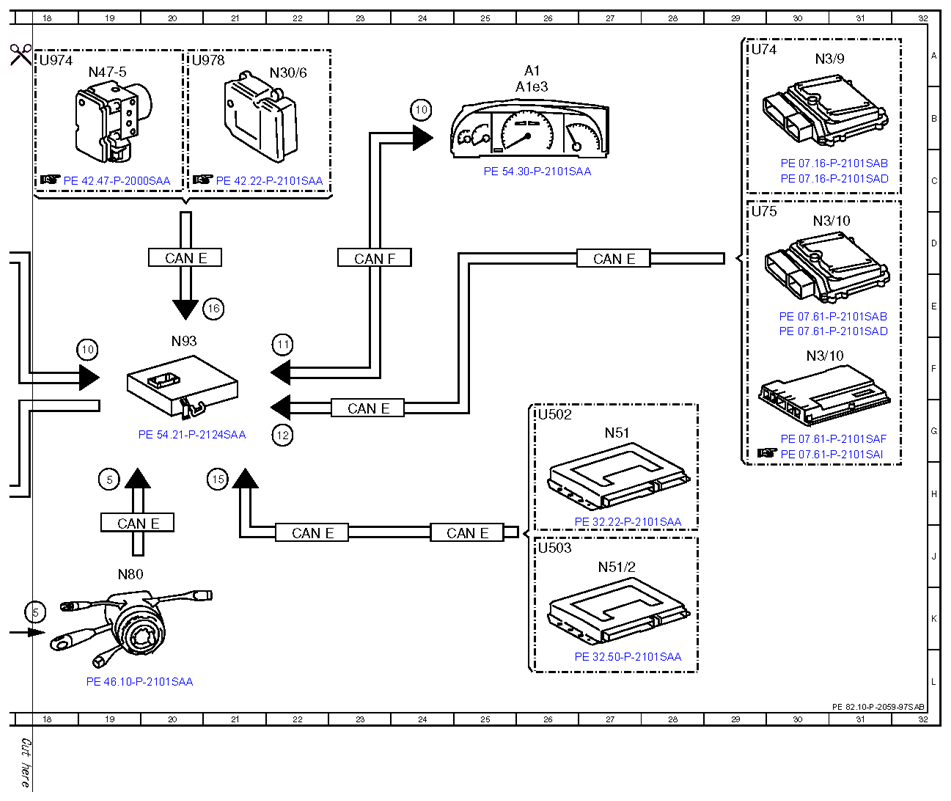

| A1 |
Instrument cluster |
26A |
| A1e3 |
High beam indicator lamp |
26B |
| A8/1 |
Transmitter key |
16B |
| B38/2 |
Rain/light sensor |
2C |
| CAN B |
Interior CAN |
10D |
| CAN B |
Interior CAN |
10B |
| CAN B |
Interior CAN |
16D |
| CAN B |
Interior CAN |
13B |
| CAN E |
Chassis CAN |
23G |
| CAN E |
Chassis CAN |
19J |
| CAN E |
Chassis CAN |
22J |
| CAN E |
Chassis CAN |
20D |
| CAN E |
Chassis CAN |
25J |
| CAN E |
Chassis CAN |
27D |
| CAN F |
Central CAN |
23D |
| CAN G |
Front end CAN |
4L |
| CAN G |
Front end CAN |
10L |
| CAN G |
Front end CAN |
16H |
| E1/3 |
Left daytime running lamps headlamp |
9H |
| E1e1 |
Left high beam |
10J |
| E1e10 |
Left bi-xenon lamp with integral ignition module |
12K |
| E1l1 |
Left high beam solenoid |
11J |
| E1m1 |
Left headlamp range adjustment motor |
11J |
| E1m3 |
Left light distribution actuator motor |
11K |
| E1n1 |
Xenon headlamp control unit |
12G |
| E2/3 |
Right daytime running lamps headlamp |
5H |
| E2e1 |
Right high beam |
4J |
| E2e10 |
Right bi-xenon lamp with integral ignition module |
2K |
| E2l1 |
Right high beam solenoid |
1J |
| E2m1 |
Right headlamp range adjustment motor |
1J |
| E2m3 |
Right light distribution actuator motor |
1K |
| E2n1 |
Xenon headlamp control unit |
2G |
| LIN 1 |
Instrument panel LIN |
4B |
| N10/1 |
Front SAM control unit with fuse and relay module |
12C |
| N3/10 |
ME-SFI [ME] control unit |
30F |
| N3/10 |
ME-SFI [ME] control unit |
30D |
| N3/9 |
CDI control unit |
30A |
| N30/6 |
Regenerative braking system control unit |
22A |
| N47-5 |
ESP control unit |
19A |
| N51 |
AIRMATIC with ADS control unit |
27G |
| N51/2 |
ABC control unit |
27J |
| N70 |
Overhead control panel control unit |
7C |
| N72/1 |
Upper control panel control unit |
7A |
| N73 |
EIS [EZS] control unit |
15A |
| N80 |
Steering column module |
19J |
| N93 |
Central gateway control unit |
20F |
| S1 |
Rotary light switch |
2A |
| S4 |
Combination switch |
16K |
| U254 |
Valid for LED lamp unit |
1K |
| U254 |
Valid for LED lamp unit |
10K |
| U502 |
Valid for AIRMATIC |
26G |
| U503 |
Valid for ABC |
26J |
| U74 |
Valid for diesel engines |
29A |
| U75 |
Valid for gasoline engines |
29D |
| U974 |
Not valid for full hybrid drive |
18A |
| U978 |
Valid for full hybrid drive |
20A |
