| 1 |
Circuit 15, status |
13C |
| 2 |
BAS release switch, status |
7E |
| 2 |
BAS release switch, status |
15D |
| 2 |
BAS release switch, status |
|
| 2 |
BAS release switch, status |
|
| 3 |
Circuit 54, status |
5B |
| 3 |
Circuit 54, status |
16G |
| 3 |
Circuit 54, status |
12A |
| 4 |
Vehicle speed, signal |
15E |
| 4 |
Vehicle speed, signal |
|
| 4 |
Vehicle speed, signal |
|
| 5 |
Emergency stop, signal |
7D |
| 5 |
Emergency stop, signal |
15D |
| 5 |
Emergency stop, signal |
|
| 6 |
Electric parking brake switch, status |
11K |
| 6 |
Electric parking brake switch, status |
15E |
| 6 |
Electric parking brake switch, status |
|
| 6 |
Electric parking brake switch, status |
|
| 7 |
Brake lights, actuation |
17D |
| 7 |
Brake lights, actuation |
22D |
| 7 |
Brake lights, actuation |
20B |
| 7 |
Brake lights, actuation |
|

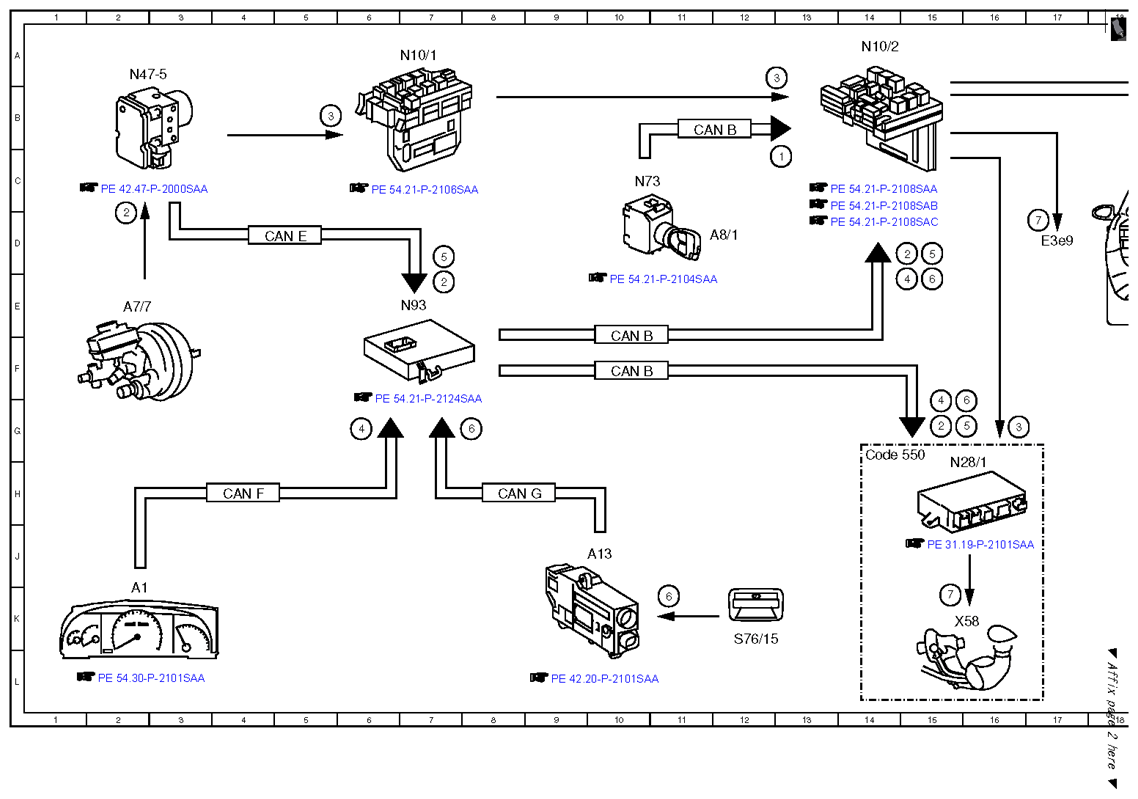

| A1 |
Instrument cluster |
2K |
| A13 |
Electric parking brake control unit |
10J |
| A7/7 |
BAS brake booster |
2E |
| A8/1 |
Transmitter key |
12D |
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN E |
Chassis CAN |
|
| CAN F |
Central CAN |
|
| CAN G |
Front end CAN |
|
| Code 550 |
Trailer hitch |
|

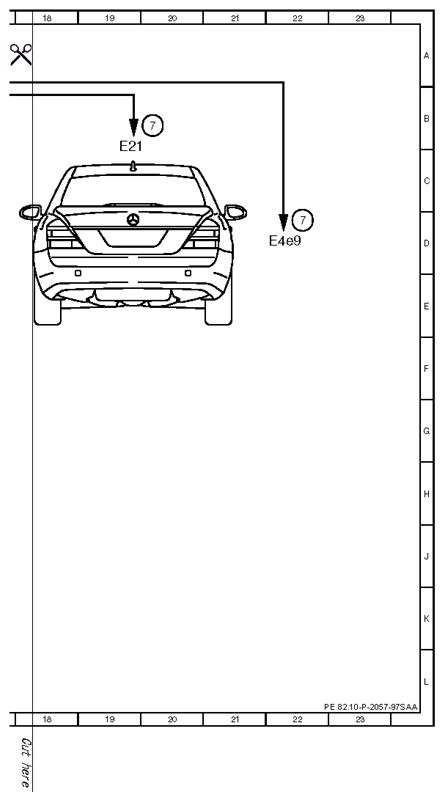

| E21 |
Center high-mounted stop lamp |
19C |
| E3e9 |
Left stop lamp, taillamp and parking lamp |
17D |
| E4e9 |
Right stop lamp, taillamp and parking lamp |
22D |
| N10/1 |
Front SAM control unit with fuse and relay module |
7A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
14A |
| N28/1 |
Trailer recognition control unit |
15H |
| N47-5 |
ESP control unit |
2A |
| N73 |
EIS [EZS] control unit |
10C |
| N93 |
Central gateway control unit |
7E |
| S76/15 |
Electric parking brake switch |
12K |
| X58 |
Trailer hitch socket (13-pin) |
15K |
