Subsequent conversion of portable cellular telephone - AZ82.70-P-0004G

MODEL 220 with CODE (278) Complete telephone preinstallation without portable with CODE (317) GSM portable cellular telephone (D2B) with CODE (854) MB portable cellular telephone except CODE (815) Dynamic navigation for portable CTEL Nokia 5110, 5130, 6110, 6150, 6210

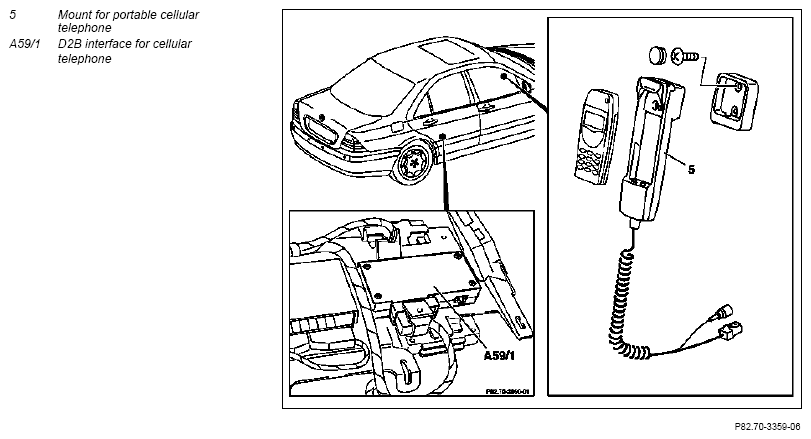

Fig 1: Identifying D2B Interface And Mount For Portable Cellular Telephone

Courtesy of MERCEDES-BENZ USA

	Notes on converting portable cellular telephone installation kit	Models 129, 168, 170, 202, 208, 210, 215, 220
	Removing
1	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery
3.1	Remove rear seat cushion
3.2	Remove bucket seats	Model 220 with code 401, right side only
4.1	Remove seat adjustment device on rear seat	Model 220 with code 401, right side only
5	Remove holder for portable cellular telephone
6	Remove trunk lining on right-hand side
	Install
7	Install holder for portable cellular telephone	For installation in armrest.
8	Convert car interface (portable cellular telephone)
9	Retrofit resistor to compensator	For Nokia 6210 only.	AZ82.70-P-0001-11A
10	Retrofit leads to compensator	Required only for dual-band operation Always necessary for Nokia 6210, if not already available.	AZ82.70-P-0001-04AG
11	Retrofitting E-net compensator	Required only for dual-band operation Always necessary for Nokia 6210, if not already available.	AZ82.70-P-0001-10GG
12	Carry out start-up and function test	According to applicable operating instructions for "Nokia telephone...".
