Retrofitting hands-free system - AZ82.70-P-0005M
MODEL 220 with CODE (354) CTEL antenna (GSM 900 and 1800 MHz) for Mercedes-Benz FSE8 hands-free system
| Removal | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
||
| 2 | Disconnect ground cable of battery | ||
| Notes on battery | All models. | ||
| 3 | Remove overhead control panel | ||
| 4 | Remove center console cover | ||
| 5 | Remove radio or COMAND | ||
| Remove radio. | |||
| Installation | |||

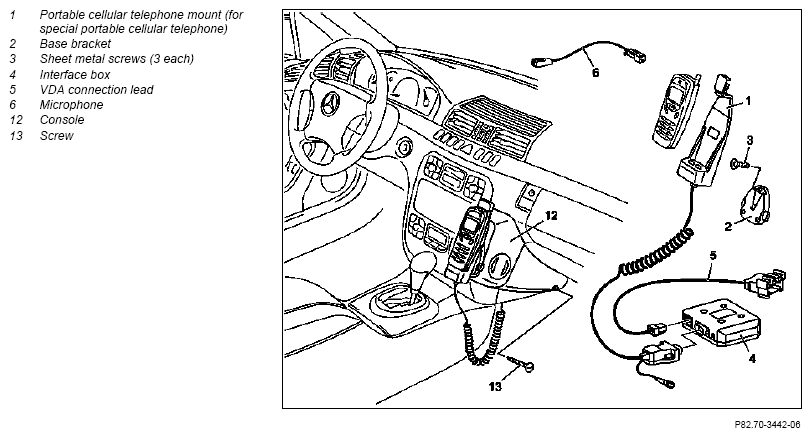

| 6 | Retrofitting portable cellular telephone mount for hands-free system | AZ82.70-P-0005-01M | |
| 7 | Retrofitting hands-free system wiring harness | AZ82.70-P-0005-03A | |
| 8 | Retrofitting hands-free system wiring harness | AZ82.70-P-0005-02M | |
| 9 | Install console (12) | ||
| 10 | Fit remaining parts 5-1 to vehicle | ||
| 11 | Carry out start-up and function test | Check telephone for proper functioning according to operating instructions. |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 58 07 | Siemens S10D portable cellular telephone mount | as required |
| B6 787 58 06 | Siemens S25 portable cellular telephone mount | as required |
| B6 787 58 04 | Nokia 3110, 8110, 8148 portable cellular telephone mount | as required |
| B6 787 58 05 | Nokia 5110, 6110, 6130, 6150 portable cellular telephone mount | as required |
| B6 787 58 08 | Nokia 7110 portable cellular telephone mount | as required |
| B6 787 58 09 | Nokia 6210 portable cellular telephone mount | as required |
| B6 787 58 10 | Siemens S/C/M35 portable cellular telephone mount | as required |
| B6 682 86 16 | Antenna adapter (only if required) | 1 |
| B6 787 58 01 | Basic set VDA | 1 |
| Accessories | Telephone console (order according to vehicle model and equipment) | 1 |
