Retrofit iPod interface with video function - AZ82.60-P-0017SX
MODEL 221.0##/1## (except 221.077/177) 1# up to 31.5.09 with CODE (809) Model year 2009 except CODE (518) Media interface
MODEL 221.0##/1## (except 221.077/177) 1# up to 31.5.09 except CODE (800) Model year 2010 except CODE (518) Media interface
| Removing | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove COMAND controller unit (A40/3) | Vehicles without code (529) HIGH Class Japan | AR82.85-P-1100SX |
| Vehicles with code (529) HIGH Class Japan | AR82.85-P-1100SY | ||
| Install | |||

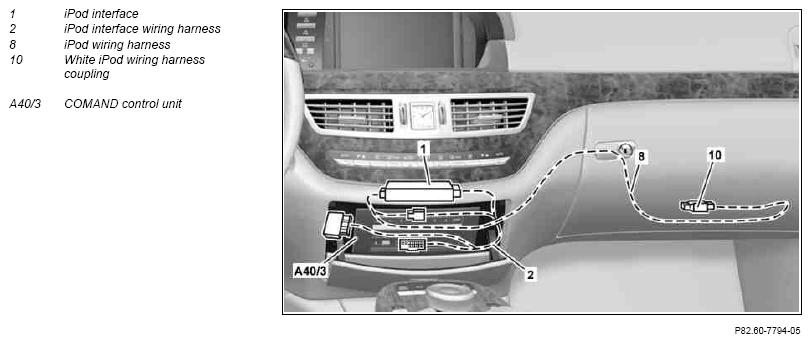

| 2 | Retrofit wiring harness for iPod (8) and wiring harness for iPod interface (2) | Cordless drill/driver |
|
| Vehicles without code (498) Japan version | AZ82.60-P-0001-01SXA | ||
| Vehicles with code (498) Japan version | AZ82.60-P-0001-01SXB | ||
| Notes on avoiding damage to optical fibers during repair work | With Media Oriented System Transport (MOST) | AH82.60-P-0001-05AK | |
| 3 | Retrofit iPod interface (1) | AZ82.60-P-0001-03SXA | |
| 4 | Install COMAND controller unit (A40/3) | AR82.85-P-1100SX | |
| 5 | Perform function test of iPod interface (1) |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| DG 98 | Electrical system and function | 1 |
