Retrofit DVD player - AZ82.60-P-0005MA

MODELS 220.0##/1## 1# as of 1.9.02 with CODE (860) TV tuner

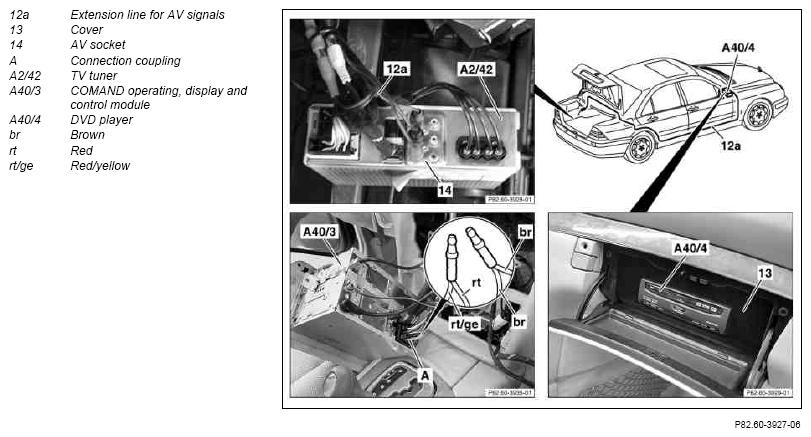

Fig 1: Overview Of Retrofit DVD Player Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Connect quiescent current retention device		*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery
3	Remove glove compartment	Release retainer using screwdriver (spreader rivet principle).
4	Disassemble glove compartment lid	Remove stowage compartment, part no longer required.
5	Remove ashtray at front of center console
6	Remove COMAND operating, display and control module
7	Remove right front floor covering	Fold back floor lining at right front, only until the footrest is exposed.
8	Remove right front inner door sill molding
9	Remove paneling on A-pillar	Only on right-hand side.
10	Remove overhead control panel control module
11	Remove right sun visor
12	Lower headliner between overhead control panel and right A-pillar	Remove handle and right front inner lamp.
13	Remove right backrest side panel
14	Remove rear backrest	Right side only, until passage to trunk is exposed.
		With rear bench seat electrically adjustable Code 223b
		Electrically adjustable individual rear seats with seat ventilation, heated seats and memory package Code 224c
		Except electrically adjustable rear bench seat Code 223b, except individual rear seats, electrically adjustable, with seat ventilation, heated seats and memory package Code 224c
15	Remove inner door sill molding in right rear
16	Remove luggage compartment trim panels	Remove left side paneling and rear wall paneling in trunk only.
		Models 220.026/028/063/065/067/070/073/074/075/083/084/087/125/128/165/167/170/173/174/175/176/178/183/184/187/875/878.
17	Remove TV tuner
	Install
18	Installing DVD player	in glove compartment box.	AZ82.60-P-0005-01MA
19	Retrofit DVD player wiring harness		AZ82.60-P-0005-02MA
20	Fit remaining parts to vehicle
21	Check DVD player for proper function		AZ82.60-P-0005-03MA
