Retrofit DVD player - AZ82.60-P-0005M

MODELS 220.0##/1## 1# up to 31.8.02 with CODE (860) TV tuner with CODE (862) TV preinstallation

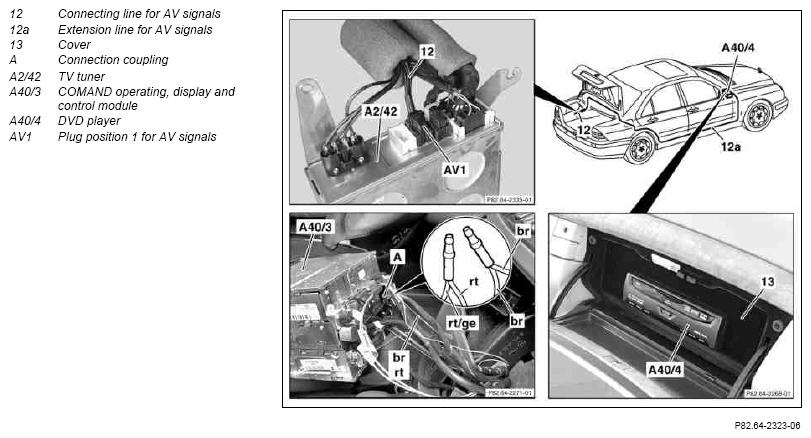

Fig 1: Overview Of Retrofit DVD Player Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Connect quiescent current retention device		*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery
3	Remove glove compartment
4	Disassemble glove compartment lid	Remove stowage compartment, part no longer required.
5	Remove ashtray at front of center console
6	Remove operating and display unit with control module
		With COMAND operating and display system Code 352a
7	Remove front floor covering	Fold back floor lining at right front, only until the footrest is exposed.
8	Remove right front inner door sill molding
9	Remove paneling on A-pillar	Right.
10	Remove overhead control panel control module
11	Remove right sun visor
12	Lower headliner between overhead control panel and right A-pillar	Remove handle and right front inner lamp.
13	Remove rear backrest	Right side only, until passage to trunk is exposed.
		With rear bench seat electrically adjustable Code 223b
		Electrically adjustable individual rear seats with seat ventilation, heated seats and memory package Code 224c
		Except electrically adjustable rear bench seat Code 223b, except individual rear seats, electrically adjustable, with seat ventilation, heated seats and memory package Code 224c
14	Remove inner door sill molding in right rear
15	Remove luggage compartment trim panels	Remove left side paneling and rear wall paneling in trunk.
		Models 220.026/028/063/065/067/070/073/074/075/083/084/087/125/128/165/167/170/173/174/175/176/178/183/184/187/875/878
16.1	Remove TV tuner	Only on vehicles with TV tuner Code 860
	Install
17.1	Retrofitting TV tuner	Only on vehicles with TV preinstallation Code 862
		Note Parts ordering notes of TV tuner. With COMAND operating and display system Code 352a
18	Installing DVD player	in glove compartment box.	AZ82.60-P-0005-01M
19	Retrofit DVD player wiring harness		AZ82.60-P-0005-02M
20	Fit remaining parts to vehicle
21	Check DVD player for proper function		AZ82.60-P-0005-03M
