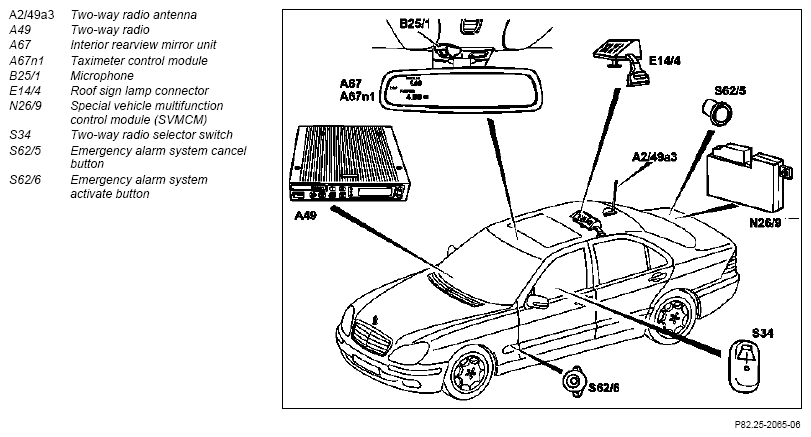

Retrofitting taxi version - AN82.25-P-1000M
MODEL 220
| Removal | |||
| 1 | Disconnect ground lead from battery | ||
| 2 | Remove radio | ||
| 3 | Remove paneling below instrument panel on left and right | ||
| 4 | Remove right front and rear door sill moldings | ||
| 5 | Remove right trunk lining | ||
| 6 | Open left and right control module box | ||
| 7 | Remove tray in center console spectacles compartment | ||
| 8 | Remove center console | ||
| 9 | Remove left and right front seats | ||
| 10.1 | Remove rear bench seat | ||
| Removing and installing rear seat cushion | |||
| Removing and installing rear seat backrest | |||
| 10.2 | Remove rear bucket seats | ||
| Removing and installing rear seat cushion | |||
| Removing and installing rear seat backrest | |||
| 11 | Remove roof headliner | ||
| 12 | Open wiring ducts in vehicle interior | ||
| 13 | Remove air ducts on center console | ||
| 14 | Remove rear fuse and relay box | ||
| 15 | Remove left door liner | ||
| 16 | Remove left front door loudspeaker | ||
| Removing and installing loudspeakers in front doors | |||
| 17 | Remove glove compartment | ||
| 18 | Remove interior rearview mirror | ||
| 19 | Remove rear window antenna for telephone and GPS | AZ82.70-P-0001-08IA | |
| Installation | |||
| 20 | Install taxi frame floor system wiring harness | AN82.25-P-1000-01M | |
| 21 | Install taximeter wiring harness | AN54.61-P-1000-01M | |
| 22 | Install roof sign wiring harness | AN82.25-P-1000-02M | |
| 23 | Install two-way radio wiring harness | AN82.71-P-1000-01M | |
| 24 | Install ID code wiring harness | AN82.71-P-1000-02M | |
| 25 | Install two-way radio override wiring harness | AN82.71-P-1000-03M | |
| 26 | Install two-way radio selector switch | AN82.71-P-1000-04M | |
| 27 | Install two-way radio mount in glove compartment | AN82.71-P-1000-05M | |
| 28 | Install special vehicle multifunction control module (SCMCM) | AN82.25-P-1000-03M | |
| 29 | Install taxi horn relay | AN82.25-P-1000-04M | |
| 30 | Install taxi two-way radio antenna | AN82.71-P-1000-06M | |
| 31 | Reassemble vehicle | ||
| 32 | Start up taxi functions | AN82.25-P-1000-05M | |
| 33 | Put new operating instructions in taxi |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| A220 820 13 97 | Basic taxi functions parts kit | 1 |
| KG69 | Molding on rear window (when telephone and GPS antenna is eliminated) | 1 |
| A220 820 51 15 | ID code wiring harness | 1 |
