Retrofitting rear screen - AN82.60-P-0002A

MODEL 220 with CODE (352a) COMAND operating and display system except CODE (860) TV tuner

MODEL 220 with CODE (352a) COMAND operating and display system with CODE (860) TV tuner In the case of retrofitted wiring harness with rear screen as with code 862

MODEL 220 with CODE (352a) COMAND operating and display system with CODE (862) TV per-equipment

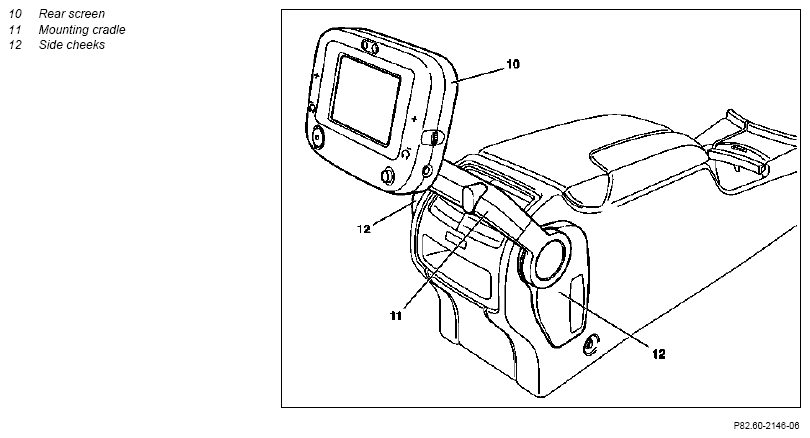

Fig 1: Identifying Rear Screen, Mounting Cable And Side Cheeks

Courtesy of MERCEDES-BENZ USA

	Removing
1	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery

3	Remove center console
4	Expose connector of TV tuner wiring harness	Fix with foam grommets and place at base of center armrest on right and left.
	Install
5	Install rear screen at center console		AN82.60-P-0002-01A
6	Plug in connectors for rear screen
7	Fit remaining parts to vehicle	3 - 1

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1012-09A	Quiescent current retention unit

PARTS ORDERING NOTES

Part no.	Designation	Quantity
Group 82	Rear screen	1
Group 82	Support for rear screen	1
