Retrofit media interface - AN82.60-P-0016SX

MODEL 221.0## (except 221.074/077) 1#, 221.1## (except 221.174/177/179) 1# with CODE 800 (Model year 2010) with CODE 801 (Model year 2011) with CODE 802 (Model year 2012) with CODE 803 (Model year 2013) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE Z07 (Top protection)

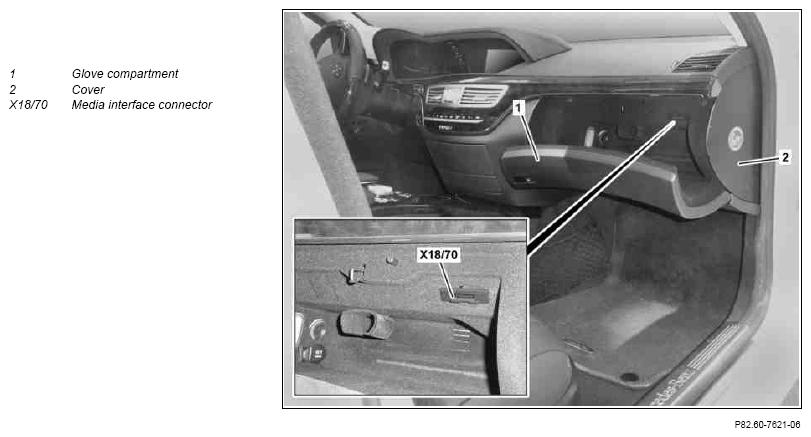

Fig 1: Identifying Retrofit Media Interface Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Disconnect ground line of battery
			AR54.10-P-0003SX
2	Remove COMAND controller unit
		except code 529 (HIGH Class Japan)	AR82.85-P-1100SX
3	Remove cover (2)
4	Remove left cover below dashboard
			AR68.10-P-1500SX
5	Remove cover on right below dashboard
			AR68.10-P-1520SX
	Install
6	Retrofit media interface control unit		AN82.60-P-0016-01SX
7	Install wiring harness with Media Interface connector (X18/70) in glove box (1)		AN82.60-P-0016-02SX
8	Prepare media interface power supply wiring harness		AN82.60-P-0016-04SX
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST)		AH82.60-P-0001-06A
		Wiring harness repair kit	Figure
9	Retrofit video signal line		AN82.60-P-0016-05SX
10	Install power supply wiring harness		AN82.60-P-0016-03SX
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST)		AH82.60-P-0001-06A
11	Assemble vehicle	Operation steps 5 to 1
12	Connect Star Diagnosis
13	Enter special equipment on the vehicle data card and the online vehicle data card	Enter code (518) Media interface.
14	Carry out variant coding with the Diagnosis Assistance System by means of Software Calibration Number (SCN)
15	Disconnect STAR DIAGNOSIS
16	Perform function test with an external audio source
17	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Media Interface retrofitted as per AN82.60-P-0016SX " under field organization texts to design group 82.

Fig 2: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Courtesy of MERCEDES-BENZ USA
