Retrofit fixed-installation telephone - AN82.70-P-0003M
MODEL 220 as of 1.7.00 up to 30.6.01 except CODE (855) TELE AID except CODE (819) 6-disk CD changer
MODEL 220 as of 1.7.00 up to 30.6.01 except CODE (855) TELE AID except CODE (810) Sound system except CODE (819) 6-disk CD changer
| Removal | |||
| 1 | Connect quiescent current retention device | *WH58.30-Z-1012-09A | |
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
||
| 2 | Disconnect ground cable of battery | ||
| Battery notes | All types. | ||
| 3.1 | Remove radio | ||
| 3.2 | Remove/install operating, display and control module | with COMAND (code 352a) operating and display system | |
| 4 | Remove rear passenger compartment floor covering | ||
| 5.1 | Open right front and rear cable ducts | ||
| 5.2 | Open left front cable duct | ||
| 6 | Remove armrest with console | ||
| 7 | Remove left front and right seats | ||
| 8 | Remove and install SAM control module with fuse and relay box, left front | ||
| 9 | Remove rear seat and rear seat backrest | ||
| Remove rear seat backrest. | |||
| Remove rear backrest with single seats (code 401). |
|||
| 10 | Remove seat adjustment device | with single seats (code 401). | |
| 11 | Remove paneling on C-pillar | ||
| 12 | Separate equipment plate below right rear seat | ||
| 13 | Remove trunk lining on right-hand side | ||
| Install | |||

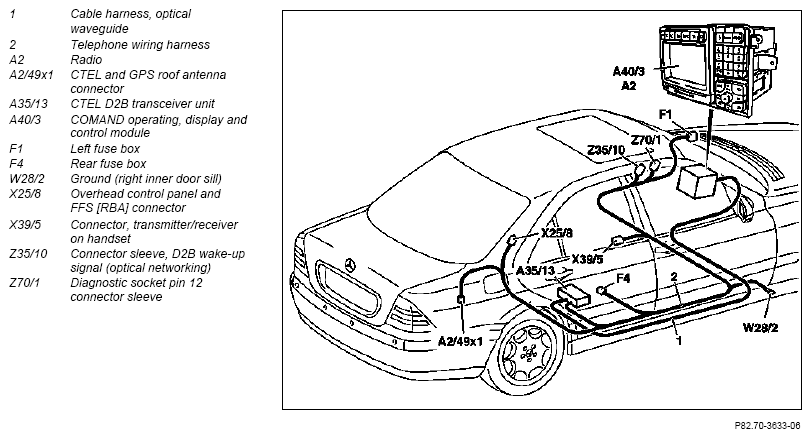

| 14 | Retrofit fiber optic wiring harness | AN82.70-P-0002-01MMM | |
| Cover optical waveguide | AR82.95-P-0005-01A | ||
| 15 | Retrofit telephone cable harness | AN82.70-P-0002-03MMM | |
| 16 | Install CTEL D2B transceiver unit | ||
| 17 | Retrofit CTEL/GPS antenna | AZ82.70-P-0001-08IA | |
| 18 | Install handset | ||
| 19 | Retrofit handsfree microphone | AN82.70-P-8969-04MA | |
| 20 | Fit remaining parts to vehicle | ||
| 21 | Perform startup and function check |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| Design Group 82 | Permanently installed CTEL control module | 1 |
| Design Group 82 | Screw for permanently installed CTEL control module | 2 |
| Design Group 82 | FFS wiring harness | 1 |
| Design Group 82 | D2B wiring harness | 1 |
| Design Group 82 | D2B clutch housing | 1 |
| Design Group 82 | CTEL handset | 1 |
| Design Group 82 | Mount (handset) | 1 |
| Design Group 82 | Mount (connector) | 1 |
| Design Group 82 | Adapter cable | 1 |
| Design Group 82 | Screw | 2 |
| Design Group 82 | Retainer plate in center armrest (only necessary for RHS, not required for LHS) | 1 |
| Design Group 69 | Microphone for handsfree system (only if necessary) | 1 |
| Design Group 69 | Mirror cover plate (only if necessary) (Color depending on interior equipment - 7D431A26AG691A36+equipment) |
1 |
| Design Group 82 | CTEL antenna assembly (only if necessary) | 1 |
| Design Group 82 | Adhesive pad (only if necessary) | 1 |
| A000 995 04 14 | Cable fastener (trunk) (only if necessary) | 1 |
| A009 997 53 81 | Grommet (only if necessary) | 1 |
| A006 989 39 71 | Bonding agent, 4299 Scotch-Mount glass primer (only if necessary) | 1 |
