Retrofit TV tuner - AN82.60-P-0001B

MODEL 220 with CODE (352a) COMAND operating and display system except CODE (862) TV pre-equipment except CODE (860) TV tuner

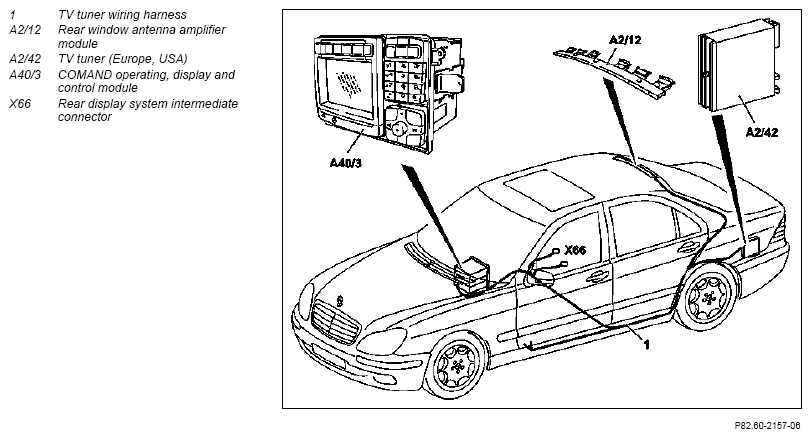

Fig 1: Identifying Retrofit TV Tuner Components

Courtesy of MERCEDES-BENZ USA

	Removing
	Notes on COMAND software status	Model 220
1	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery

3	Remove COMAND operating, display and control module.	A sticker is located on the right side of the unit with the designation of the software status "Q15 and higher are TV capable". On units with Q14 and lower update software to status Q15 with update CD.
4	Remove cover above shift lever

5	Remove driver's seat

6	Remove left rear seat
7	Open left wiring ducts
8	Remove paneling from left and right C-pillars
9	Lower headliner at rear
10	Remove antenna amplifier module	Replaced by new antenna amplifier module (A2/12)

11	Remove side cover on left side of trunk	Replaced by new side paneling.
	Install
12	Retrofit TV tuner		AN82.60-P-0001-01A
13	Retrofit TV tuner wiring harness		AN82.60-P-0001-03A
14	Fit remaining parts to vehicle	11 - 1
15	Install software update for TV tuner	for control parts with Q14 and lower	AN82.60-P-0001-02B

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1012-09A	Quiescent current retention unit

PARTS ORDERING NOTES

Part no.	Designation	Quantity
Group 82	TV tuner	1
Group 82	Bracket	1
Group 82	M5 nut	1
Group 82	5.5 x 16 sheet metal screws	3
Group 82	TV tuner wiring harness	1
Group 82	Antenna module (order according to vehicle equipment)	1
Group 69	Side paneling in trunk on left	1
