Retrofit Linguatronic voice control system - AN82.70-P-0004CM

MODEL 220.### 1# up to 30.6.00 with CODE (316) MB D-net telephone (D2B) with CODE (317) D-net cell phone (D2B) except CODE (347) TELE AID emergency call system (D2B) except CODE (494) USA version

MODEL 220.### 1# as of 1.7.00 up to 31.8.03 except CODE (494) USA version with CODE (852) Complete cell phone preinstallation at upper center console with CODE (853) MB standard telephone with CODE (854) MB cell phone except CODE (855) TELE AID

A Version with code (316) MB D-net telephone (D2B)

B Version with code (317) D-net cell phone (D2B)

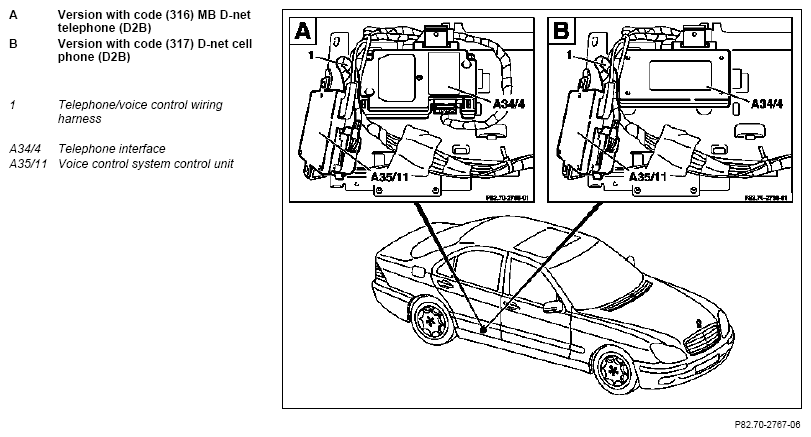

Fig 1: Overview Of Retrofit Linguatronic Voice Control System Components

Courtesy of MERCEDES-BENZ USA

	Remove
	Notes on Linguatronic voice control system	Model 220 up to 30.6.00 with CODE (316) MB D-net telephone (D2B) with CODE (317) D-net cell phone (D2B) with CODE (347) TELE AID emergency call system (D2B)
	Notes on fiber optic cable
1	Disconnect battery ground line
2	Remove rear seat cushion
		Model 220.0/1 without code (223) Electrically adjustable rear bench seat without code (224) Electrically adjustable individual rear seats, with seat ventilation, seat heater and memory package
		Model 220.0/1 with code (223) Electrically adjustable rear bench seat
3	Remove instrument cluster	Only in vehicles with version of less than 6/03.
	Install
4	Retrofit Linguatronic voice control system wiring harness		AN82.70-P-0004-01CM
5	Retrofit fiber optic cable wiring harness		AN82.70-P-0002-01CM
6	Retrofit of Linguatronic voice control system		AN82.70-P-0004-04CM
7	Install remaining parts onto vehicle	Steps 3 to 1.
8	Read out target/actual configuration using STAR-DIAGNOSIS and reconfigure D2B components and enable in the instrument cluster
9	Carry out function check	Refer to operator's manual "Telephone with voice control".
