Windshield wipers, windshield washer system - operational inspection - AP82.35-P-8252BA

MODEL 124, 129, 140, 168, 170, 202, 208, 210, 215, 220, 414

Model 124

Model 129

Model 140

Model 168, 414, shown on model 168

Model 170

MODEL 202

Model 208, 210, shown on model 210

Model 215, 220, shown on model 220

	Check
	Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight-fitting safety glasses. No fire, naked flames or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children.
	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	Always remove ignition key when working on windshield wiper mechanism.
1	Close engine hood	MODEL 124, 129, 140, 168, 170, 202, 208, 210, 215, 220, 414
		MODEL 170	AR88.40-P-1000G
		MODEL 202	AR88.40-P-1000E
		MODEL 208, 210	AR88.40-P-1000F
		MODEL 215, 220
2	Close liftgate or trunk lid, doors, sliding roof or soft top, or Vario roof and side windows
3	Switch on ignition
4	Operate front and rear windshield washer system and check spray nozzles for proper operation and settings	MODEL 124, 129, 140, 168, 170, 202, 208, 210, 414	AP82.35-P-8252-01BA
		MODEL 215, 220 If necessary correct setting using adjusting drift.	AP82.35-P-8252-01M
		Adjusting tool With clogged spray nozzle ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice.	Figure
5	Check park position of wiper blades	The wiper blades must not come into contact with the A-pillar, cowl or liftgate. Otherwise the body or wiper mechanism will be damaged. In the event of any deviation to the park position: ↓ Check and adjust wiper arms subject to separate repair order.
6	Check setting of wiper arms on windshield	The wiper blades must not come into contact with the A-pillar, cowl or liftgate. Otherwise the body or wiper mechanism will be damaged. Spray water over the windshield washer system on the windshield and switch on wiper at highest setting. If there are problems: ↓ Determine and rectify cause, subject to separate repair order.
7	Check setting of wiper arm on rear window	If installed Spray water over the windshield washer system on the rear window and switch on wiper at highest setting. Wiper blade must not make contact with the liftgate. ↓ Otherwise the liftgate or wiper mechanism may be damaged. If there are problems: ↓ Determine and rectify cause, subject to separate repair order.
8	Switch on low beam	With CODE 600 (Headlamp cleaning system) or with CODE 612 (Xenon headlamp unit) or with CODE 614 (Bi-xenon headlamp unit)

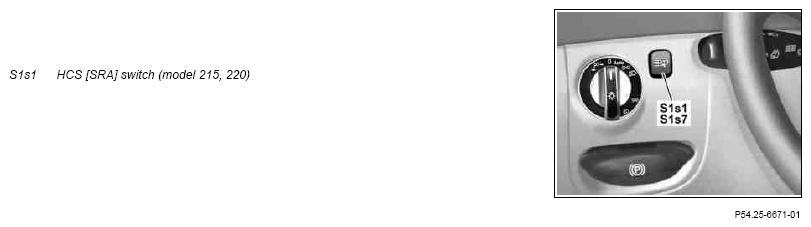

9.1	Press HCS [SRA] switch (S1s1)	With CODE 600 (Headlamp cleaning system) or with CODE 612 (Xenon headlamp unit) or with CODE 614 (Bi-xenon headlamp unit) Vehicles with HCS [SRA] switch (S1s1) The spray jet must impact in the light source area on the headlamp lens. Correct setting if necessary.
		Adjusting tool For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice. For spray nozzles that cannot be adjusted and with a deviating spray pattern: ↓ Replace spray nozzle subject to separate repair order.	Figure
9.2	Repeatedly operate windshield washer system of windshield	With CODE 600 (Headlamp cleaning system) or with CODE 612 (Xenon headlamp unit) or with CODE 614 (Bi-xenon headlamp unit) Vehicles without HCS [SRA] switch (S1s1) Repeatedly operate windshield washer system for windshield until the headlamp cleaning system is activated. The spray jet must impact in the light source area on the headlamp lens. Correct setting if necessary.
		Adjusting tool For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice. For spray nozzles that cannot be adjusted and with a deviating spray pattern: ↓ Replace spray nozzle subject to separate repair order.	Figure
10	Switch off low beam	With CODE 600 (Headlamp cleaning system) or with CODE 612 (Xenon headlamp unit) or with CODE 614 (Bi-xenon headlamp unit)
11	Switch off ignition
12	Correct fluid level in reservoir of windshield washer system	MODEL 124, 129, 140, 168, 170, 202, 208, 210, 414	AP82.35-P-8210Z
		MODEL 215, 220	AP82.35-P-8210N
