Removing and installing taillamp - AR82.10-P-4905M

MODEL 215, 220

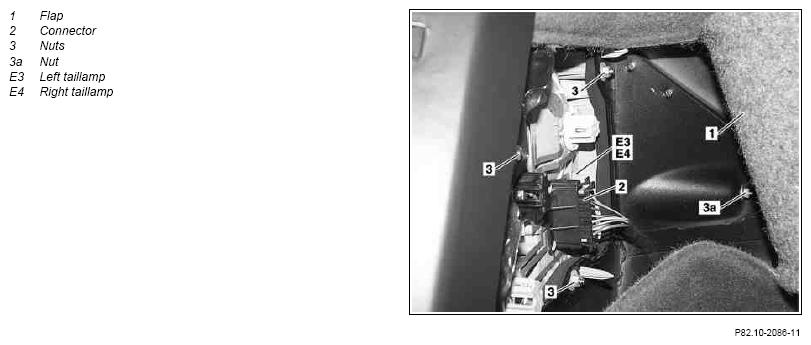

Fig 1: Identifying Taillamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removal, installation
1	Open flap (1) to change bulb
2	Unclip connector (2) and pull off
3	Unscrew nuts (3)	Carefully open flap (1) and unscrew nut (3a)
4	Remove left/right taillamp (E3/E4)	Check gasket on taillamp for damage. Ensure that gasket is properly seated
5	Install in opposite order
6	Check for proper function
