Removing and installing rear window noise suppression capacitor - AR82.62-P-7385I
MODEL 215, 220
Illustrated on model 220

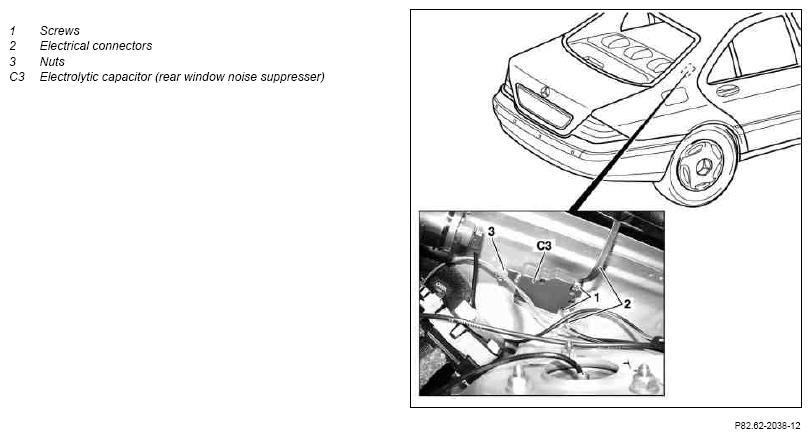

Fig 1: Identifying Rear Window Noise Suppression Capacitor Remove/Install Components - Illustrated On Model 220
| Removal, installation | |||
| 1 | Remove paneling on C-pillar | Model 215 | AR68.30-P-4490N |
| Model 220 | |||
| 2 | Unscrew screws (1) and disconnect electrical connections (2) from electrolytic capacitor (rear window noise suppresser, (C3) | ||
| 3 | Unscrew nut (3) and remove rear window noise suppresser capacitor from C-pillar | ||
| 4 | Install in opposite order |
