Removing and installing loudspeakers in front doors - AR82.62-P-7845I
MODEL 215, 220
Models 215, 220
Illustrated on model 220
Model 215 only
| Removal, installation | |||
| 1 | Remove door liner on front doors | Model 215 | AR72.10-P-1000N |
| Model 220 | |||

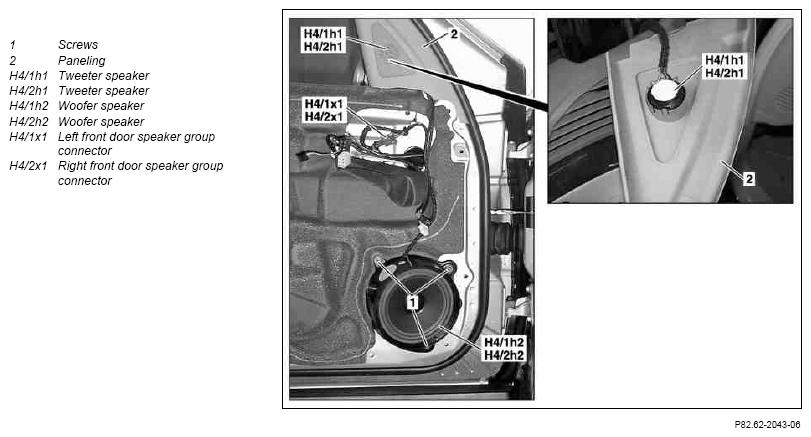

| 2 | Unclip left front door speaker group connector (H4/1x1) and pull out | ||
| 3 | Remove paneling (2) on rearview mirror triangle | ||
| 4 | Unclip tweeter speaker (H4/1h1) from paneling | ||
| 5 | Unscrew screws (1) on woofer speaker (H4/1h2) and remove speaker | ||

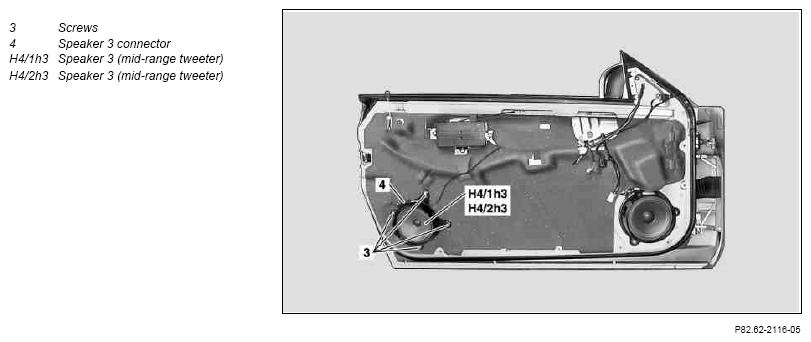

| 6.1 | Unscrew screws (3) from speaker 3 (H4/1h3) and remove speaker | Model 215 | |
| 7.1 | Remove connector (4) from speaker 3 (H4/1h3) and remove speaker | Model 215 | |
| 8 | Install in opposite order | ||
| 9 | Check for proper function |
