Removing and installing headlamp for daytime running light - AR82.10-P-2300SX
MODEL 221 as of 1.6.09 except CODE (498) Japan version
MODEL 221 with CODE (800) Model year 2010 except CODE (498) Japan version

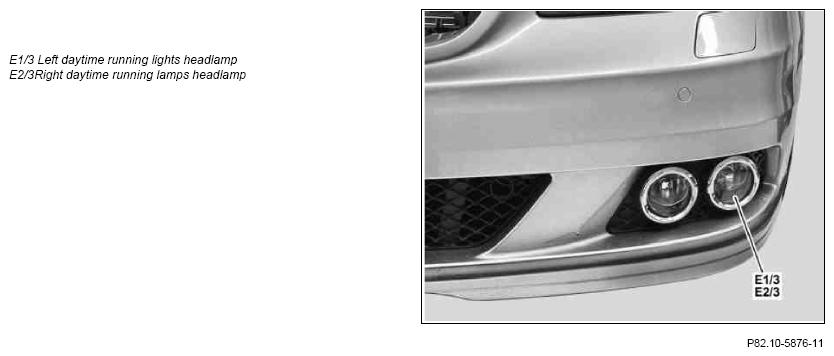

Shown on model 221 without CODE (236) Daytime running lights in LED version

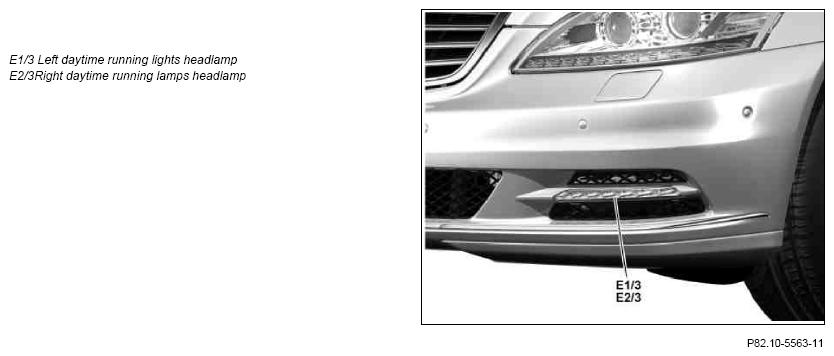

Shown on model 221 with code (236) Daytime running lights in LED version
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||
| 2 | Remove front section of fender liner in right front fender | When removing the right daytime running lights headlamp (E2/3) on vehicles without code (487) Active Body Control (ABC). | |
| 3 | Remove terminal strip at right front bumper and detach bumper | When removing the right daytime running lights headlamp (E2/3) on vehicles without code (487) Active Body Control (ABC). | AR88.20-P-2000SX |
| 4 | Remove engine compartment paneling at front | When removing right daytime running lights headlamp (E2/3) on vehicles with code (487) Active Body Control (ABC) or when removing left daytime running lights headlamp (E1/3) on vehicles without code (487) Active Body Control (ABC). | |
| Vehicles without code (Z07) Top protection | AR61.20-P-1105SX | ||
| Vehicles with code (Z07) Top protection | AR61.20-P-1105SXS | ||
| 5 | Remove windshield washer fluid reservoir | When removing left daytime running lights headlamp (E1/3) on vehicles with code (487) Active Body Control (ABC). | AR82.35-P-6000SY |
| 6 | Disconnect electrical connector at left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) | ||
| 7 | Remove rear screws/bolts and remove left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) from cover of bumper | ||
| 8 | Install in the reverse order |
