Removing and installing hands-free system microphone - AR82.70-P-8969I
MODEL 215, 220
Illustrated on model 220

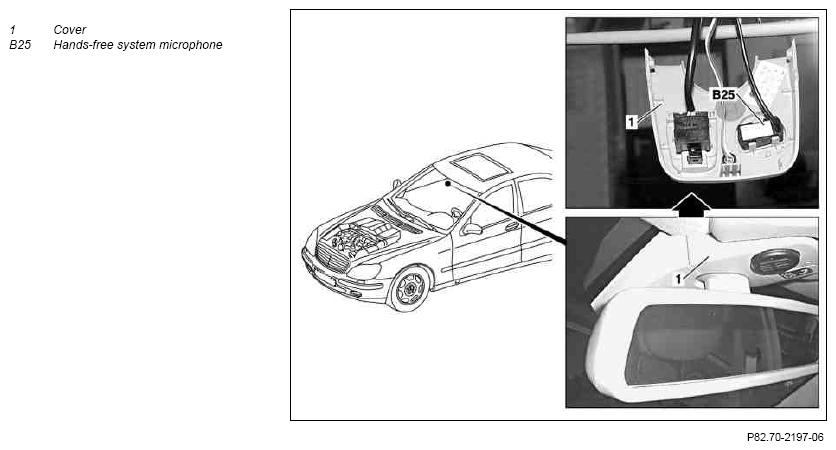

Fig 1: Identifying Hands-Free System Microphone Remove/Install Components - Illustrated On Model 220
| Removal, installation | |||
| 1 | Remove overhead control panel control module | AR82.20-P-1000M | |
| 2 | Unclip cover (1) | ||
| 3 | Disconnect connector | ||
| 4 | Unclip hands-free system microphone (B25) | ||
| 5 | Install in opposite order | ||
| 6 | Check for proper function |
