Removing and installing fiber optic cable - AR82.70-P-0004MD

MODEL 215, 220 Between trunk control modules

Illustrated on model 220

Removing fiber optic cable M2

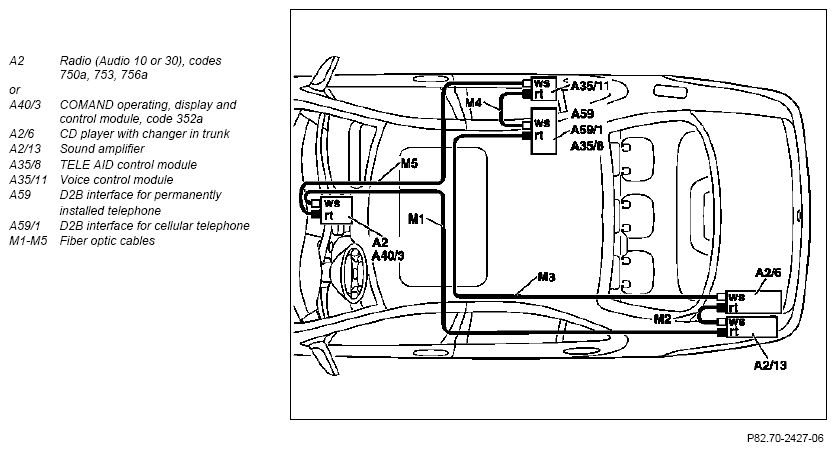

Fig 1: Identifying Fiber Optic Cable M2 Remove/Install Components - Illustrated On Model 220

Courtesy of MERCEDES-BENZ USA

	Removal, installation
	Notes on fiber optic cables
1	Remove paneling in trunk	Left paneling
2	Remove control module (sound amplifier and CD player) from floor and lift out upward
3	Cover fiber optic cable	Do not kink or stretch fiber optic cable D2B  Install caps on fiber optic cable connector and module connection	AR82.95-P-0005-01A
4	Leave fiber optic cable module disconnected		AR82.70-P-0004-01A
5	Install in opposite order
6	Start up and check for proper function
