Removing and installing TELE AID emergency call system pushbutton switch - AR82.95-P-0002I
MODEL 215, 220 with CODE (348) TELE AID emergency call system
Illustrated on model 220

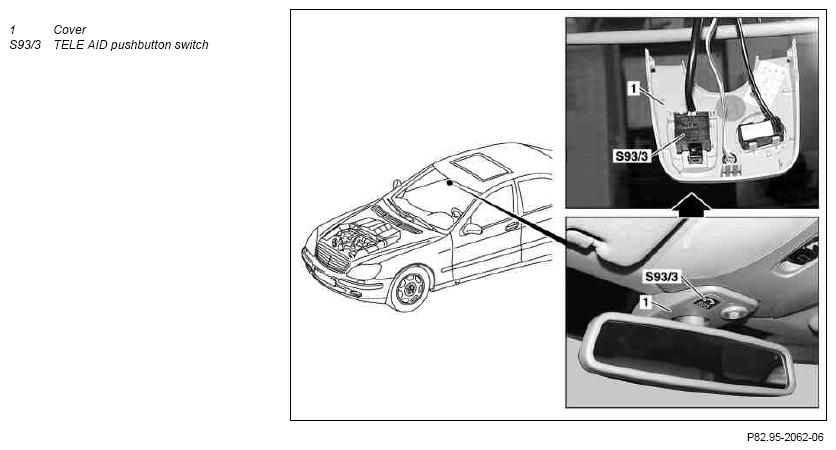

Fig 1: Identifying TELE AID Emergency Call System Pushbutton Switch Remove/Install Components - Illustrated On Model 220
| Removal, installation | |||
| 1 | Remove overhead control panel control module | AR82.20-P-1000M | |
| 2 | Unclip cover (1) | ||
| 3 | Unclip TELE AID pushbutton switch (S93/3) | ||
| 4 | Disconnect connector | ||
| 5 | Install in opposite order | ||
| 6 | Check for proper function |
