Removing and installing Keyless Go antenna - AR82.62-P-8000MD
MODEL 215, 220 with CODE (889) Keyless Go in trunk
Illustrated on model 220
Left side

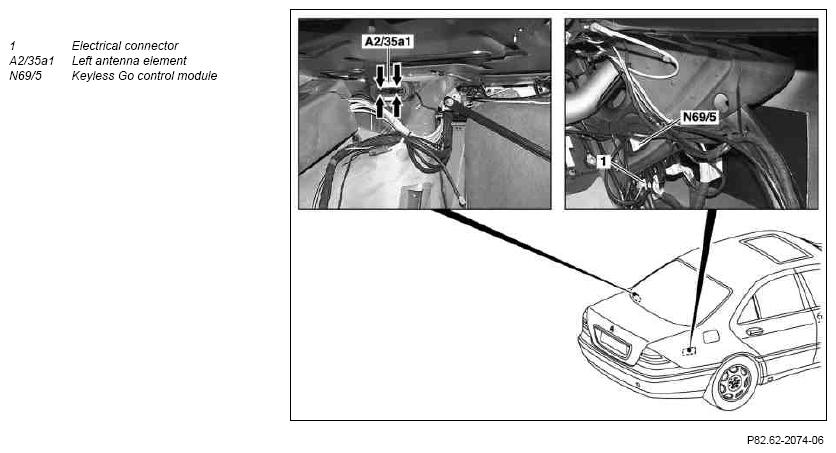

Fig 1: Identifying Keyless Go Antenna Remove/Install Components - Illustrated On Model 220 (Left Side)
Right side

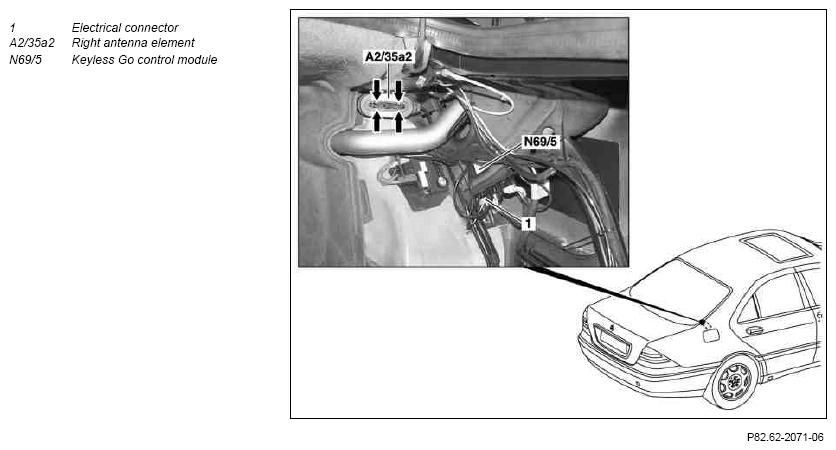

Fig 2: Identifying Keyless Go Antenna Remove/Install Components - Illustrated On Model 220 (Right Side)
| Removal, installation | |||
| 1 | Remove paneling in trunk | ||
| 2 | Release and remove electrical connector (1) from Keyless Go control module (N69/5) | ||
| 3 | Press locks on left and right antenna elements (A2/35a1, A2/35a2) in trunk in direction of arrow and remove left/right antenna elements (A2/35a1, A2/35a2) | ||
| 4 | Install in opposite order |
