Removing and installing Keyless Go antenna - AR82.62-P-8000MC
MODEL 215, 220 with CODE (889) Keyless Go in bumper

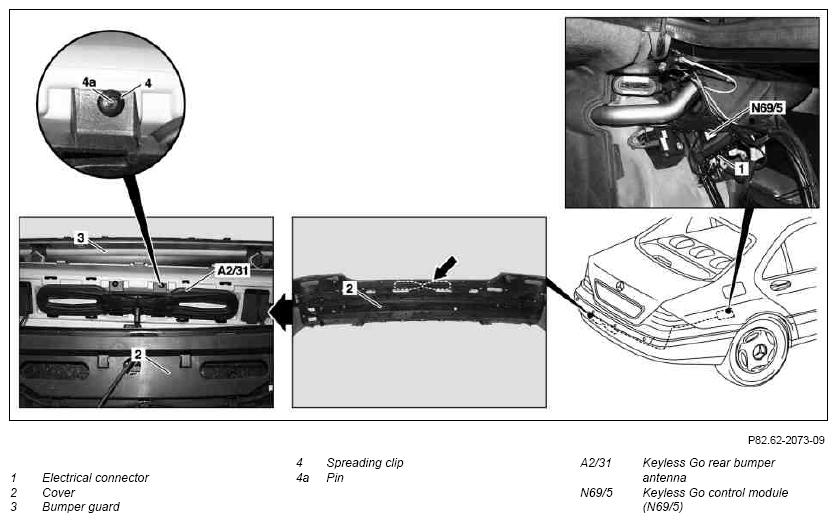

Illustrated on model 220
| Removal, installation | |||
| 1 | Remove rear bumper | Model 215 | AR88.20-P-2200N |
| Model 220 | |||
| 2 | Disconnect electrical connector (1) on Keyless Go control module (N69/5) | ||
| 3 | Unclip cover (2) on bumper | ||
| 4 | Unclip bumper guard (3) | ||
| 5 | Press in pin (4a), remove spreading clip (4) and remove Keyless Go rear bumper antenna (A2/31) from bumper | ||
| 6 | Install in opposite order |
