Remove/install telescopic nozzle of headlamp cleaning system - AR82.15-P-6100M
MODEL 220 with CODE (600a) Headlamp cleaning system
MODIFICATION NOTES
| 29.11.00 | Removing headlamp deleted | Step 1 | |
| 30.11.00 | Operation sequence changed |
| Remove/install | |||

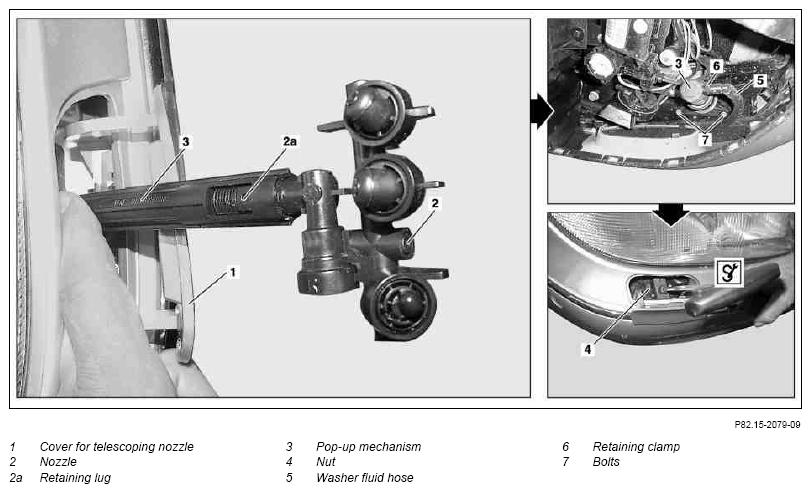

| 1 | Remove lower engine compartment lining | ||
| 2 | Clamp off washing water hose (6) with clamp | Fig 2 | |
| 3 | Pivot telescoping nozzle cover (1) toward front | ||
| 4 | Pull out nozzle (2) until stop is reached | ||
| 5 | Slightly lift retaining lug (2a) on nozzle (2) with suitable tool and remove nozzle (2) from telescoping unit (3) | ||
| 6 | Unscrew nut (4) from telescoping unit (3) | Fig 3 | |
| 7 | Remove retaining clips (6) and remove washing water hose (5) from pop-up mechanism (3) | ||
| 8 | Unscrew the bolts (7). | ||
| 9 | Pull out pop-up mechanism (3) downward | ||
| 10 | Install in the reverse order | ||
| 11 | Check fluid level of windshield washer system and correct if necessary | ||
| AP82.35-P-8210Z | |||
| 12 | Carry out operational check |
