Removing and installing rear dome lamp - AR82.20-P-0113M

MODEL 220

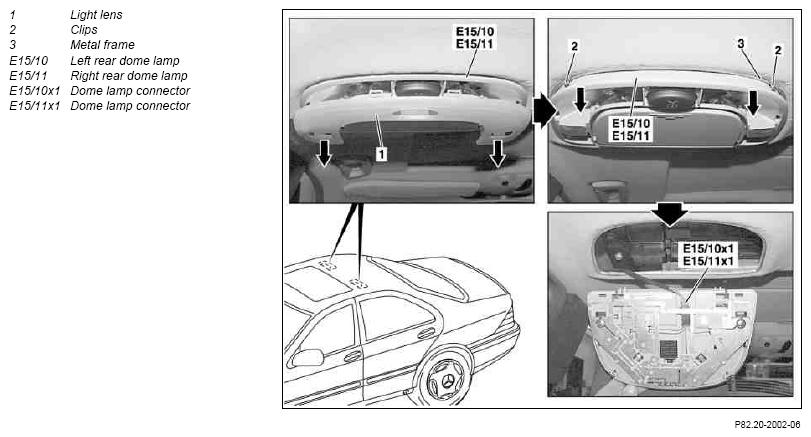

Fig 1: Identifying Rear Dome Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removal, installation
1	Remove lens (1) on left/right rear dome lamp (E15/10, E15/11)	Pay attention to cleanliness
2	Pry left/right rear dome lamp (E15/10, E15/11) out of metal frame (3) in area of clips (2) with plastic wedge and swing downward in direction of arrow.	Use clean plastic wedge to pry out Ensure that plastic wedge is inserted between left/right rear dome lamp (E15/10, E15/11) and metal frame (3) and not  between sheet metal frame (3) and headliner
			Figure
3	Disconnect dome lamp connector (E15/10x1, E15/11x1)
4	Install in opposite order
5	Check for proper function

Fig 2: Identifying Installation Wedge (110 589 03 59 00)
