Remove/install rear axle level sensor - AR82.10-P-0005I
MODEL 220 except CODE (487) Active Body Control (ABC)
| Remove/install | |||
| Replace self-locking nuts and bolts | |||
| 1 | Disconnect plug from rear axle level sensor (B22/3) | ||

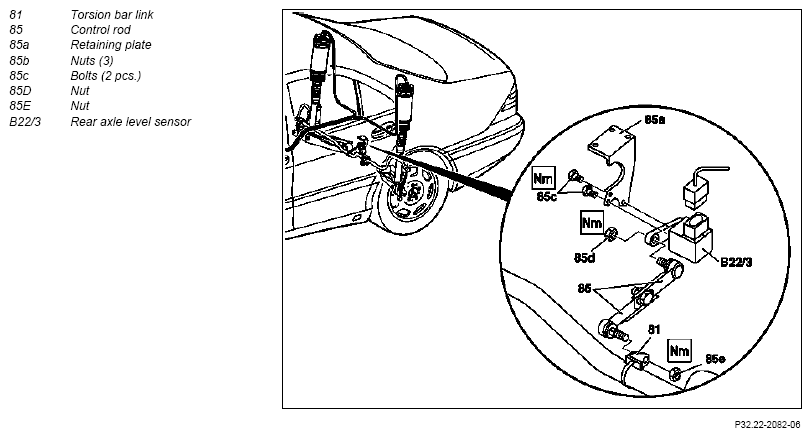

| 2 | Unscrew nut (85e) of control rod (85) from stabilizer bar intermediate lever (81) | *BA82.10-P-1001-02A | |
| 3 | Unscrew nut (85d) of control rod (85) at level sensor (B22/3) and remove control rod (85) | ||
| *BA82.10-P-1002-02A | |||
| 4 | Remove bolts (85c) of retaining plate (85a) at level sensor (B22/3) and remove level sensor (B22/3) | *BA82.10-P-1003-02A | |
| 5 | Install in the reverse order | ||
| 6 | Calibrate vehicle level using Star Diagnosis after replacing the level sensor |
REAR AXLE LEVEL SENSOR
| Number | Designation | Model 220 except model 220 with code 487 | |
|---|---|---|---|
| BA82.10-P-1001-02A | Nut, level sensor link rod to torsion bar intermediate lever | Nm | 10 |
| BA82.10-P-1002-02A | Nut, control rod to level sensor | Nm | 5 |
| BA82.10-P-1003-02A | Bolt, level sensor to retaining plate | Nm | 4 |
| BA82.10-P-1004-02A | Nut, retaining plate to frame floor | Nm | 8 |
