Remove/install license plate lamp - AR82.10-P-5161M

Models 215, 220

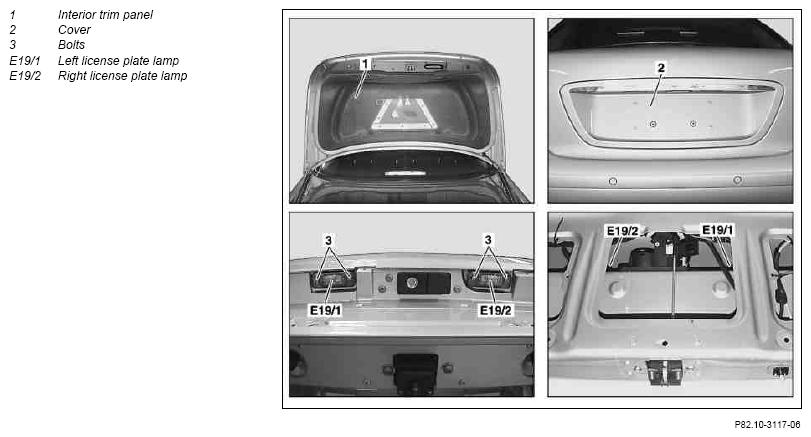

Fig 1: Identifying License Plate Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove, Install
1	Remove inner paneling (1) on trunk lid	See ↓
		Remove/install trunk lid
2	Remove license plate
3	Remove cover (2) on trunk lid
4	Remove screws (3) and pull lens out of license plate lamp (E19/1, E19/2) on the trunk lid	ensure that the seals are seated correctly.
5	Unplug electrical connector on license plate lamp (E19/1, E19/2)
6	Remove license plate lamp (E19/1, E19/2)
7	Install in the reverse order
