Remove/install headlamp cleaning system pump - AR82.35-P-6003SX

MODEL 216.386

MODEL 221.0/1 with CODE (600) Headlamp cleaning system except CODE (487) Active Body Control (ABC)

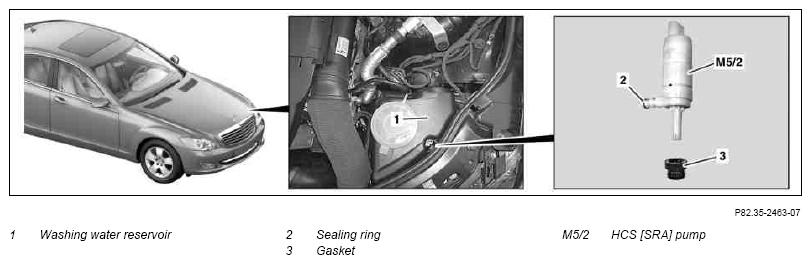

Fig 1: Identifying Headlamp Cleaning System Pump Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Loosen washing water reservoir (1)		AR82.35-P-6000-01SX
2	Detach electrical connector on HCS [SRA] pump (M5/2)
3	Detach washer fluid hose from the HCS [SRA] pump (M5/2)	To pull off the washer fluid hose, press safety clamp. Collect washer fluid which flows out. Install new seal ring (2).
4	Unclip HCS [SRA] pump (M5/2) and remove	Check gasket (3) and replace if necessary.
			Figure
5	Install in the reverse order
6	Fill washer fluid reservoir (1)
	Check windshield washing unit fluid level, top up if necessary		AP82.35-P-8210SX
7	Check windshield washer system for proper operation
	Windshield wipers, windshield washer system and headlamp cleaning system - function check		AP82.30-P-8252SX

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
