Remove/install fax paper roll - AR82.80-P-0101SXS

MODEL 221.1 with CODE (Z07) Top protection Possio PM70 fax machine

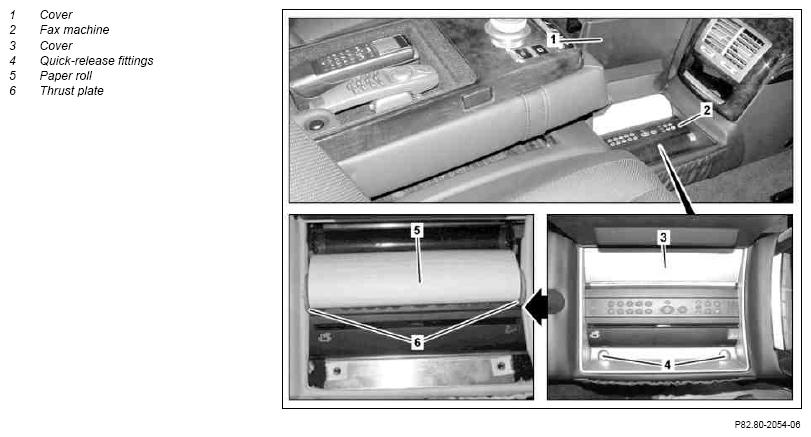

Fig 1: Identifying Fax Paper Roll Remove/Install Components

Courtesy of MERCEDES-BENZ USA

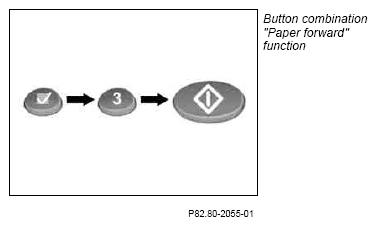

Fig 2: Button Combination Paper Forward Flow Diagram

Courtesy of MERCEDES-BENZ USA

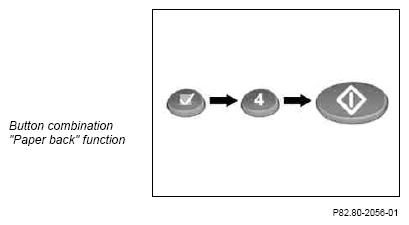

Fig 3: Button Combination Paper Back Flow Diagram

Courtesy of MERCEDES-BENZ USA

	Removing
1	Open cover (1) of business console
2	Turn quick-release couplings (4) 90° counterclockwise
3	Take off cover (3)
4	Remove paper roll (5) out of the paper slot
	Install
5	Pull thrust plates (6) out of the paper roll (5) and attach to the new paper roll (5)
6	Unroll paper on the new paper roll (5) slightly, insert it evenly into the paper slit and draw it into the fax machine (2) by selecting the "Paper forward" function	If the paper is not drawn in evenly, eject it from the fax machine (2) by selecting the "Paper back" function and then draw it in again.
7	Insert paper roll (5) into the paper slot
8	Lift metal clip at the side of the fax machine (2) and adjust paper in the paper slot
9	Pull up paper and guide it through the opening in the cover (3), then insert cover (3) and secure using the quick-release couplings (4)
10	Close cover (1) of business console
