Remove/install display in rear - AR82.60-P-7720SX

MODEL 221.0/1 up to 31.5.09 with CODE (864) Rear entertainment system except CODE (800) Model year 2010

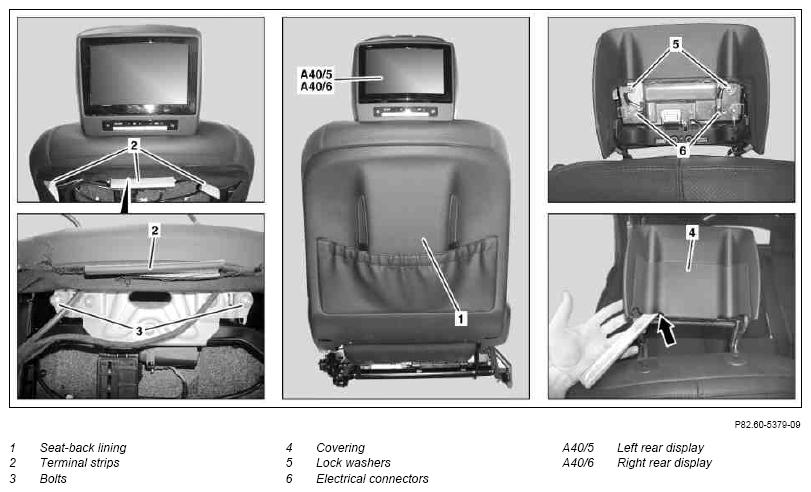

Fig 1: Identifying Rear Display Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat-back lining (1) from backrest of left or right front seat
2	Remove front seat head restraint		AR91.16-P-0040SX
3	Loosen terminal strips (2)
4	Loosen bolts (3)	Don not unscrew bolts (3) completely
5	Lift left rear display (A40/5) or right rear display (A40/6) and unclip covering (4) (arrow)		Figure
6	Bend open lock washers (5) with a suitable screwdriver and pry off	Replace lock washers (5).
7	Disconnect electrical connectors (6) and remove left rear display (A40/5) or right rear display (A40/6)
8	Install in the reverse order
