Remove/install E-net compensator - AR82.70-P-0010SX

MODEL 221.0/1 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system

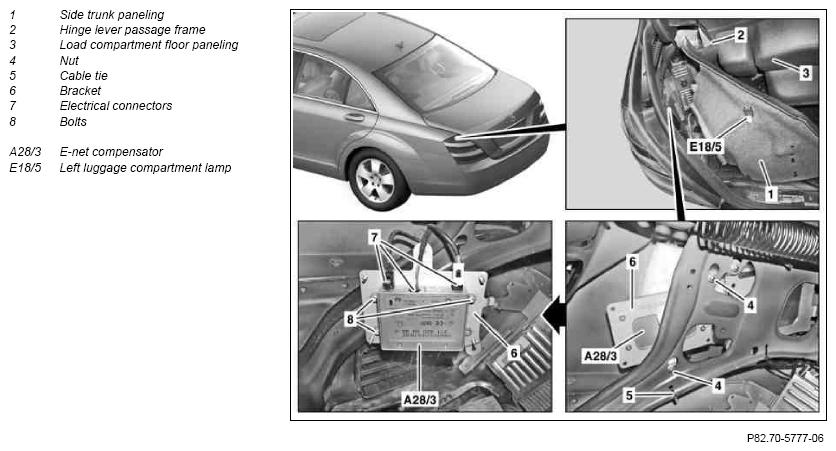

Fig 1: Identifying E-Net Compensator Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Undo panel at side in luggage compartment (1) and swivel to one side until the E-net compensator (A28/3) is accessible	Do not bend the hinge arm passage frame (2) otherwise the plastic will become discolored.
		Vehicles without code (Z07) Top protection	AR68.30-P-4600SX
		Vehicles with code (Z07) Top protection	AR68.30-P-4600SXS
2	Cut cable ties (5)
3	Undo nuts (4) and remove bracket (6) with E-net compensator (A28/3)
4	Detach electrical connectors (7) and remove E-net compensator (A28/3) with bracket (6)
5	Install in the reverse order
6.1	Remove E-net compensator (A28/3) from bracket (6)	When replacing E-net compensator (A28/3).
