Remove/install CD player with changer - AR82.64-P-7507I

MODELS 215.3, 220.0/1 up to 31.8.02 with CODE (819) 6-disc CD changer

Shown on model 220 with sound system (code 810)

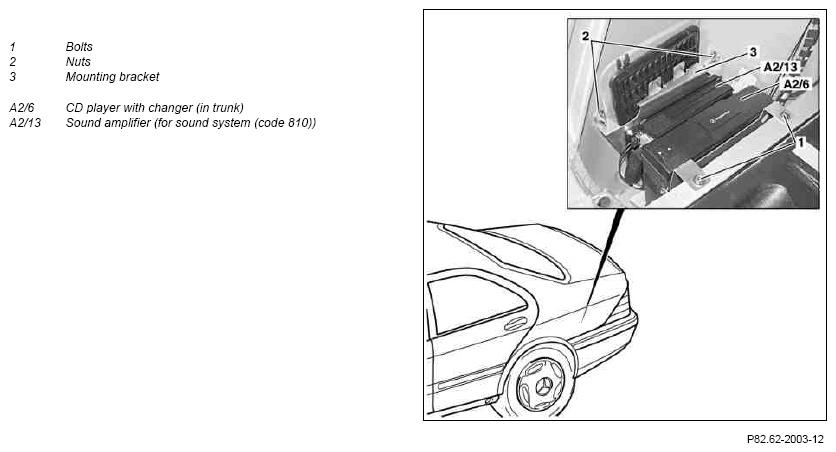

Fig 1: Identifying CD Player With Changer Remove/Install Components - Shown On Model 220

Courtesy of MERCEDES-BENZ USA

	Remove/Install	Do not buckle or extend fiber optical cable, routing radii must be greater than 25 mm! Do not damage standard wiring harness (23).
1	Connect no load current retention unit		*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery
3	Remove coverings in trunk	Floor covering, rear end center assembly paneling and side paneling on left-hand side.
4	Unscrew bolts (1) and nuts (2) and take out implement carrier (3)
5	Unplug connectors	Do not buckle or extend fiber optical cable, routing radii must be greater than 25 mm!  If the CD player with changer (in luggage compartment) (A2/6) is to remain removed over a longer period of time, install an adapter to close the D2B ring.
6	Remove CD player with changer (in luggage compartment) (A2/6) from implement carrier
7	Install in the reverse order
8	Perform a function test
