Remove and install COMAND operating, display and control module - AR82.85-P-1000M

MODEL 220 as of 1.9.02

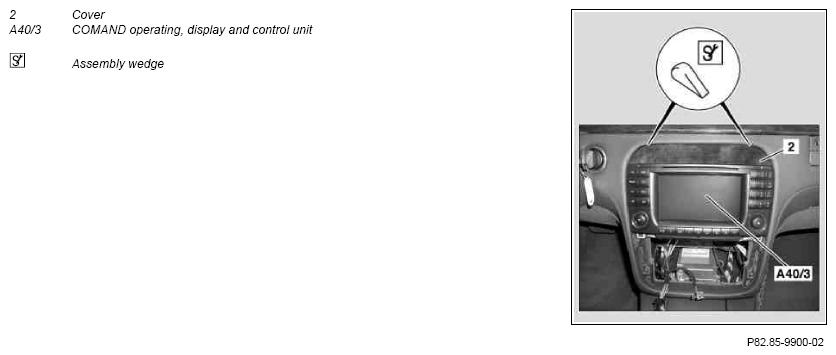

Fig 1: Identifying COMAND Operating, Display, Control Unit And Cover
G10128903Courtesy of MERCEDES-BENZ USA

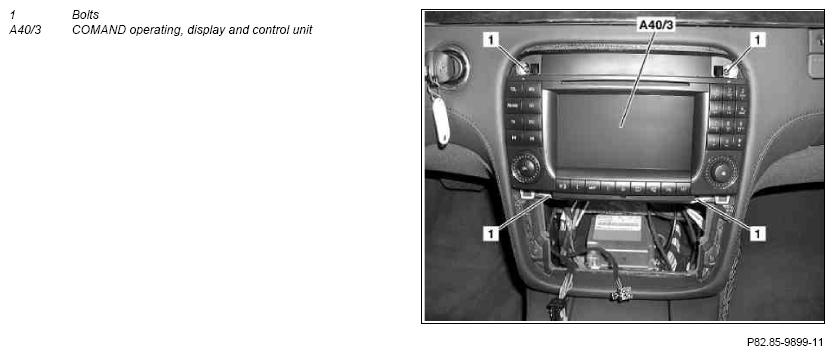

Fig 2: Identifying COMAND Operating, Display, Control Unit And Bolts
G10128904Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/Install
DANGER Risk of explosion  caused by escaping oxyhydrogen gas. Risk of injury  caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries  caused by short circuit. Risk of poisoning  caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards.
Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground.
Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers.

1 Disconnect ground cable of battery
NOTES Notes on battery
IMPORTANT Notes on AGM battery Model 220.028 with CODE (450) Taxi version. Models 220.070/075/175/178/875/878 as of 1.1.01.
2 Remove control and operating unit
3 Unclip cover (2) from mounts on right and left with assembly wedge IMPORTANT Cover (2) above COMAND operating, display and control module (40/3)
SPECIAL TOOL Installation wedge Figure
4 Unscrew screws (1)
5 Pull COMAND operating, display and control module (40/3) out of center console IMPORTANT Until electrical connectors and fiber optic cable are accessible.
6 Disconnect fiber optic cable and electrical connectors and remove COMAND operating, display and control module (40/3) IMPORTANT Do not kink or stretch fiber optic cable.
7.1 Cover fiber optic cable IMPORTANT Only vehicles up to 31.8.03 with D2B. AR82.95-P-0005-01A
8 Install in the reverse order
9 Read diagnostic trouble code memory and erase
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS, interrogate fault memory   AD00.00-P-2000-04A
    STAR DIAGNOSIS system. *WH58.30-Z-1048-13A
10 Perform function check
Fig 3: Identifying Mounting Wedge (110 589 03 59 00)
G07079389Courtesy of MERCEDES-BENZ USA
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS diagnosis system, Compact Passenger Car 6511 1801 00
