Rear entertainment, location of components - GF82.90-P-0002-01LE

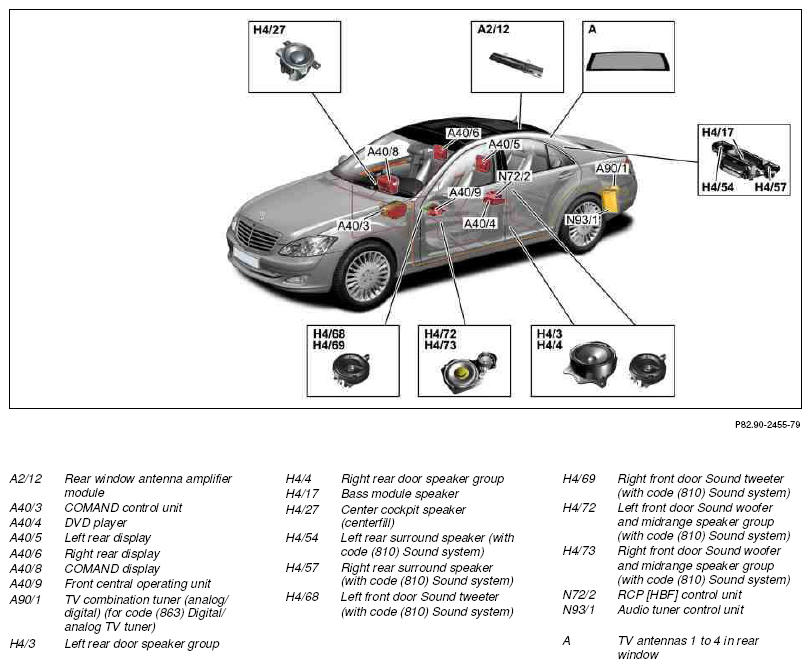

Fig 1: Overview Of Rear Entertainment Components

Courtesy of MERCEDES-BENZ USA

up to 31.5.09

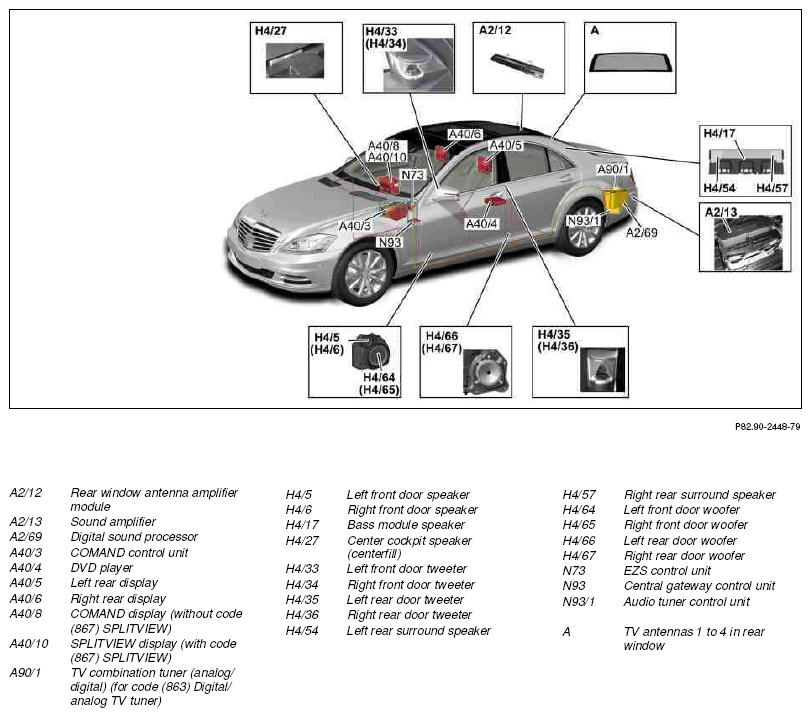

Fig 2: Overview Of Rear Entertainment Components

Courtesy of MERCEDES-BENZ USA

As of 1.6.09 with code (810) Sound system

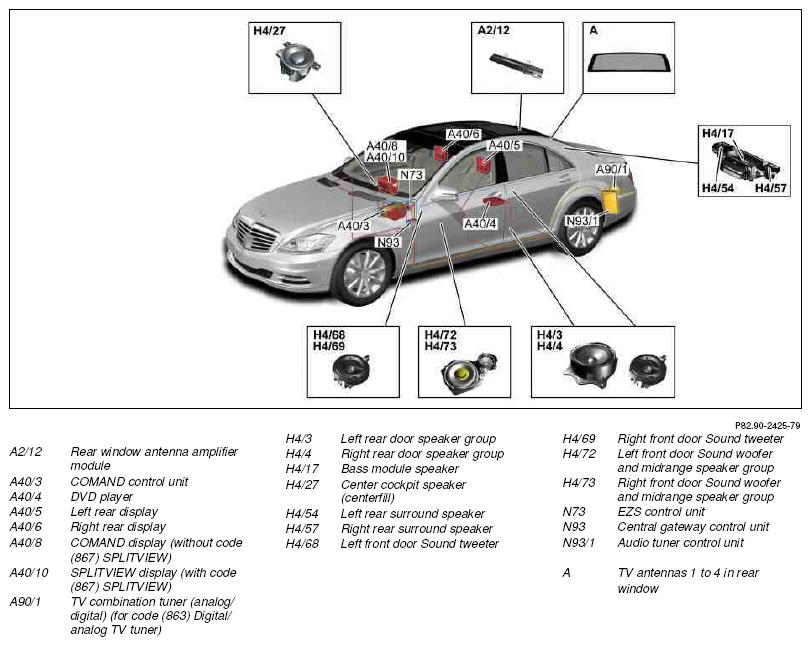

Fig 3: Overview Of Rear Entertainment Components

Courtesy of MERCEDES-BENZ USA

As of 1.9.10 with code (811) Advanced Sound-System
