Rear entertainment block diagram - GF82.90-P-0002-03LE

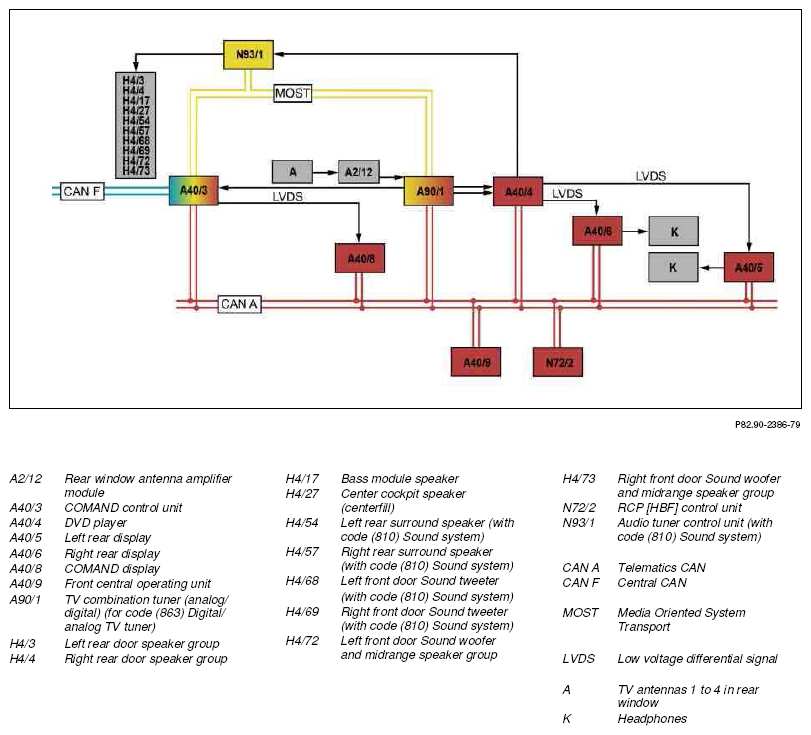

Fig 1: Rear Entertainment Block Diagram

Courtesy of MERCEDES-BENZ USA

up to 31.5.09

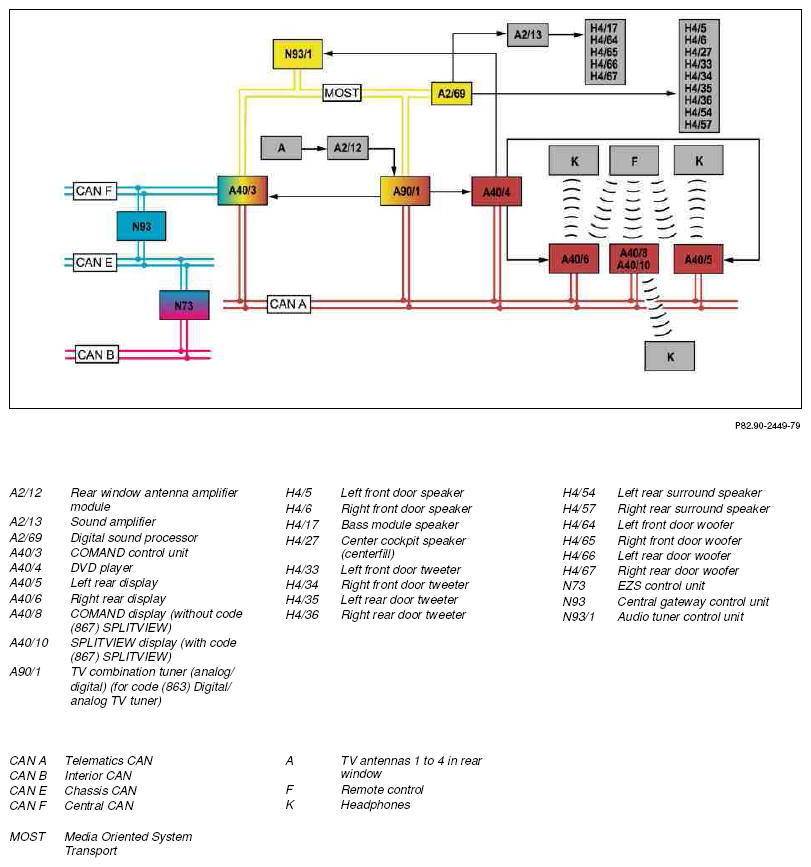

Fig 2: Rear Entertainment Block Diagram

Courtesy of MERCEDES-BENZ USA

As of 1.6.09 with code (810) Sound system

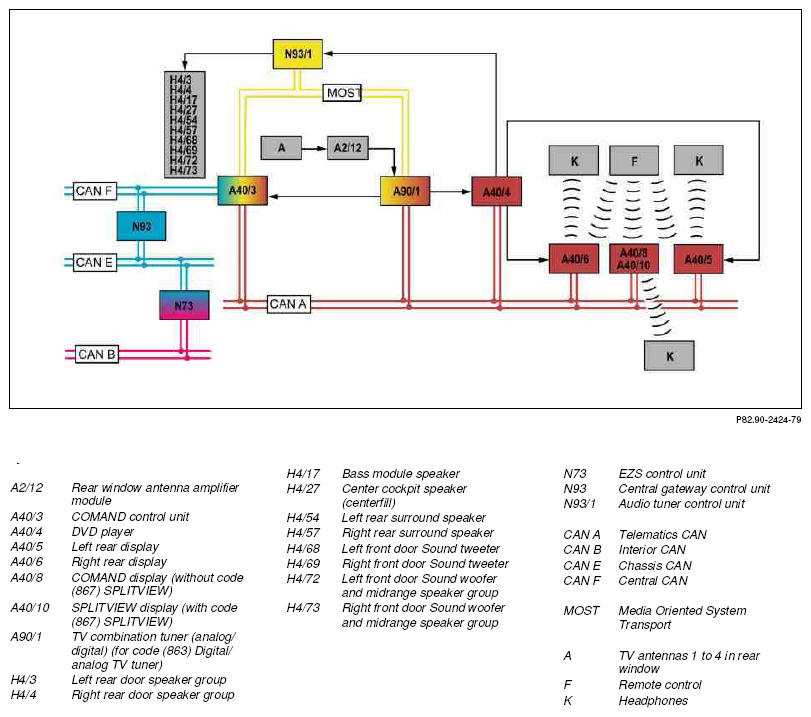

Fig 3: Rear Entertainment Block Diagram

Courtesy of MERCEDES-BENZ USA

As of 1.9.10 with code (811) Advanced Sound System
