Emergency call system block diagram - GF82.95-P-0004-02LEU

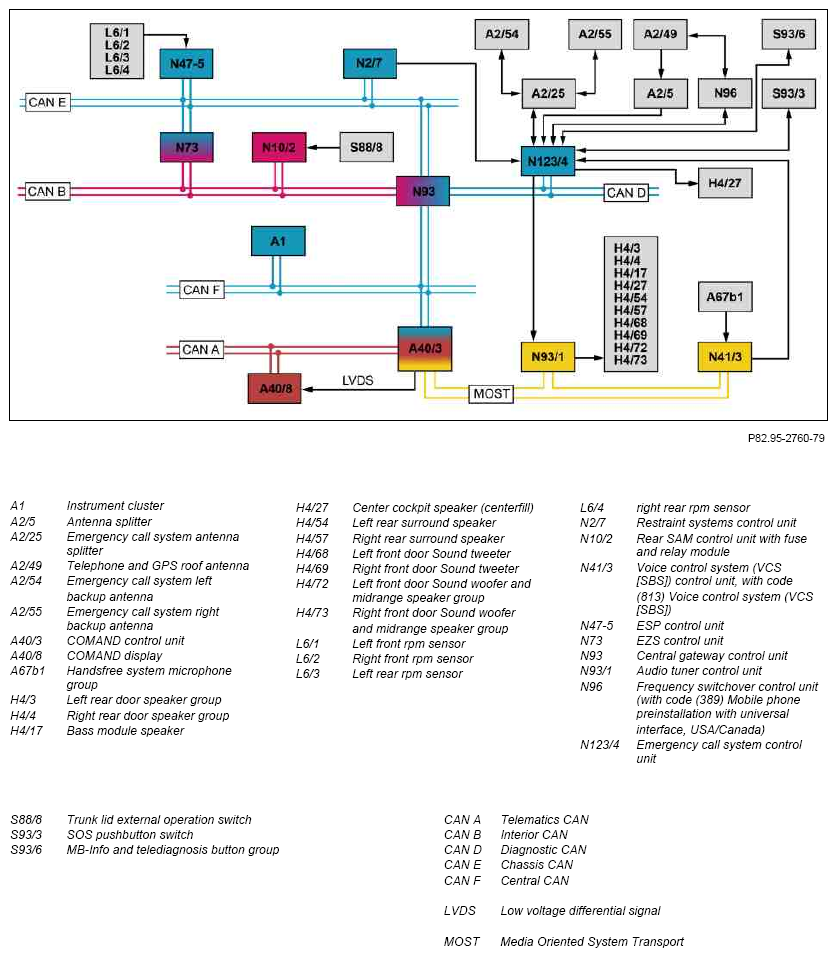

Fig 1: Emergency Call System Block Diagram - Shown Without Code (811)
G10112345Courtesy of MERCEDES-BENZ USA

Shown without code (811) Advanced Sound System

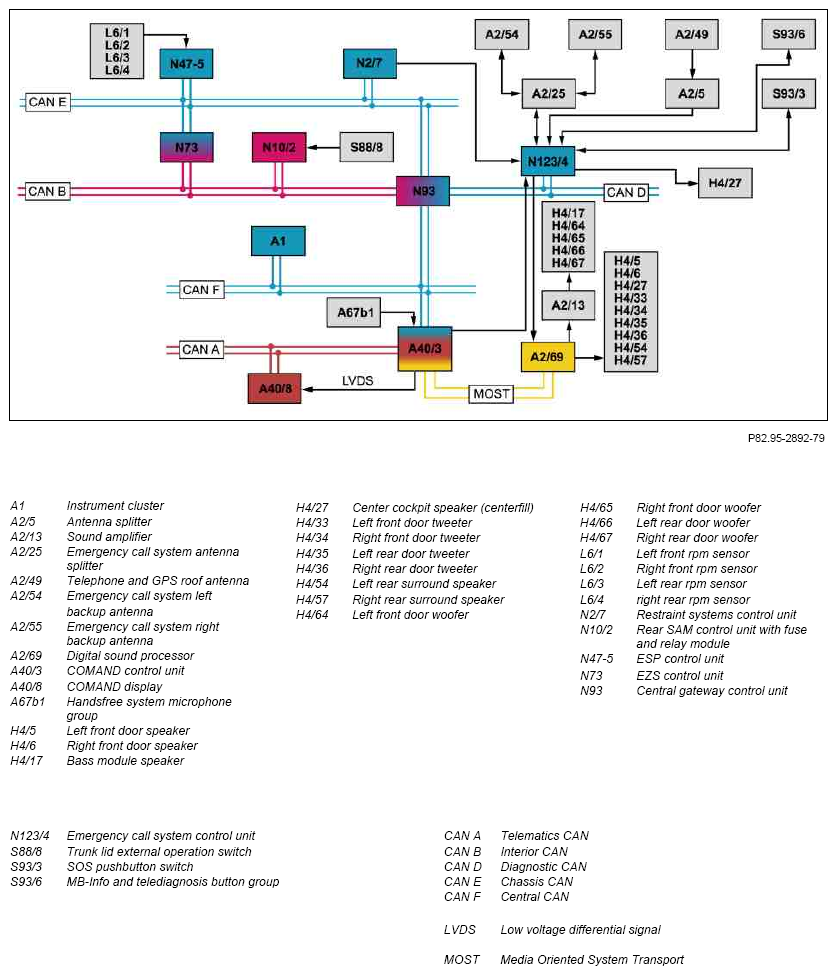

Fig 2: Emergency Call System Block Diagram - Shown With Code (811)
G10112346Courtesy of MERCEDES-BENZ USA

Shown with code (811) Advanced Sound System, as of 1.9.10
