Telephone and GPS roof antenna component description - GF82.62-P-4119SX
MODEL 221.0/1 except CODE (494) USA version up to Model Year 08
MODEL 221.0/1 up to 31.12.05 with CODE (494) USA version
Location

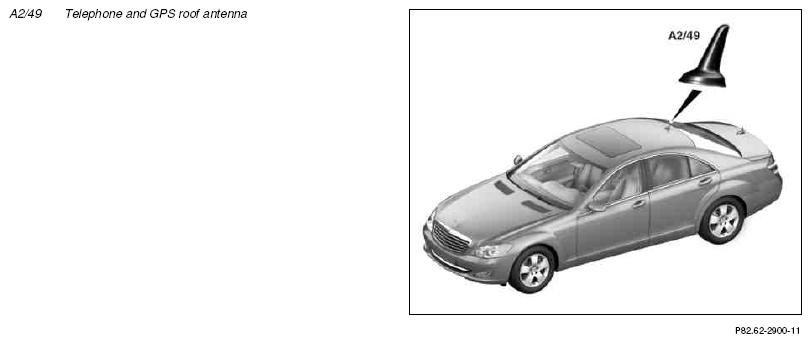

The telephone and GPS roof antenna is on the roof of the vehicle.
Task
The telephone signals are transmitted and received via the telephone antenna (A2/49a1) integrated in the telephone and GPS roof antenna. On vehicles with code (228) Stationary heater, the signals of the STH radio remote control transmitter (A8/3) are received and the confirmation signals of the STH radio remote control receiver (A6/1) are transmitted via the telephone antenna integrated in the telephone and GPS roof antenna.
The Global Positioning System (GPS) signals for navigation and for the Telematic Alarm Identification on Demand (emergency call system) (TELE AID), with code (494) USA version, are received via the GPS antenna (A2/49a2) integrated in the telephone and GPS roof antenna.
Design
The telephone and GPS roof antenna consists of the two following antennas:
- Telephone antenna
- GPS antenna
